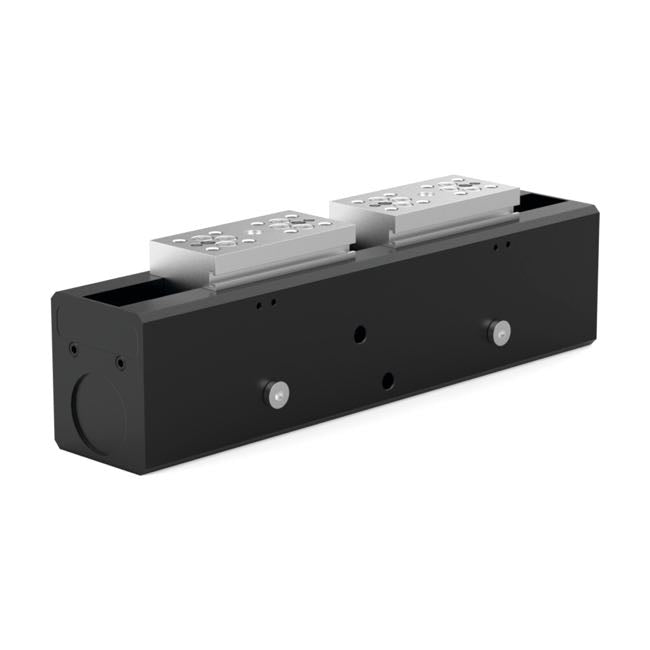

RPB-28M 2 Jaw Heavy Duty Parallel Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$8,280.00
Couldn't load pickup availability
| Specification | Value |
|---|---|
| Total Rated Grip Force @ 7 bar (100 psi) | 2669 N (600 lbf) |
| Total Stroke | 203.2 mm (8 in) |
| Weight | 19.1 kg (42 lb) |
| Pressure Range | 1.4–7 bar (20–100 psi) |
| Cylinder Bore Ø | 50.8 mm (2.000 in) |
| Displacement | 410 cm³ (25 in³) |
| Temperature Range (Viton® seals) | -30° to 150°C (-20° to 300°F) |
| Actuation Time | 1.00 s |
| Accuracy | ±0.13 mm (±0.005 in) |
| Repeatability | ±0.05 mm (±0.0020 in) |
| Valve to actuate: Double-acting, 4-way, 2-position. | |
