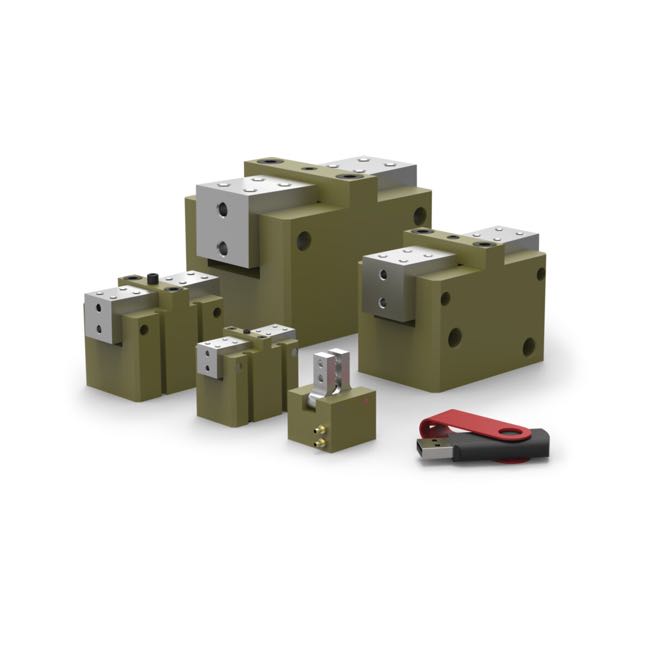

RA-5 2 Jaw Angular Cam Driven Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$301.00
Couldn't load pickup availability
| Specification | RA-5 Value |
|---|---|
| Total Rated Grip Force @ 7 bar (100 psi) | 89 N (20 lbf) |
| Total Stroke | 15° per finger (30° total) |
| Open Stroke Adjustment | 15° per finger (30° total) |
| Weight | 0.11 kg (0.25 lb) |
| Pressure Range | 3–7 bar (40–100 psi) |
| Ingress Protection (IP) | IP43 |
| Displacement | 2.1 cm³ (0.13 in³) |
| Temperature Range (Buna-N) | -35° to 80°C (-30° to 180°F) |
| Temperature Range (Viton®) | -30° to 150°C (-20° to 300°F) |
| Actuation Time | 0.10 s |
| Accuracy | ±0.13 mm (±0.005 in) |
| Repeatability | ±0.08 mm (±0.003 in) |
| Valve to Actuate | 4-way, 2-position |
