POP-D Pop-Up Wheel Divert

SKU: POP-D
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

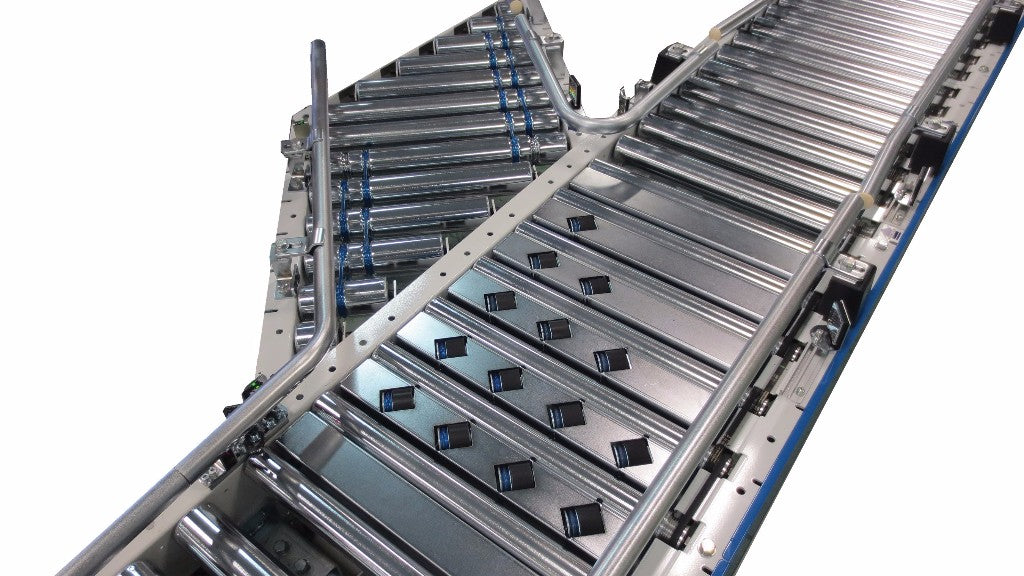

The POP-D is a 24V DC pop-up wheel divert module that enables 30 or 45 degree angle transfers within a standard conveyor line. Using MDR-driven pop-up wheels, it diverts packages without pneumatics, drops directly into existing conveyor frames, and operates at 197 FPM with a minimal 3 mm (0.1”) transfer clearance.

Available in four widths (15.5” through 27.3”) with a fixed 29.9” frame length, the POP-D is compatible with Itoh Denki’s IB-E03B Ethernet/IP controllers or CB-016S7 driver cards.

Key Features

  • 24V DC — safe, low-voltage operation
  • Drop-in installation into existing conveyor frames
  • 30 or 45 degree angle transfer
  • Simplified transfer using MDR — no pneumatics
  • Minimal transfer clearance: 3 mm (0.1”)
  • Minimum package size: 300 mm (11.8”) x 300 mm (11.8”)

Environment

  • Ambient temperature: 32 to 104°F (0 to 40°C) — no freezing
  • Humidity: below 90% RH (no condensation)
  • No corrosive gases
  • Vibration: below 0.5G

Applicable Driver Cards

  • (2) IB-E03B Ethernet/IP controllers per module
    PNP: IB-E03BP  |  NPN: IB-E03BN
  • (3) CB-016S7 driver cards per module
    PNP: CB-016P7  |  NPN: CB-016N7

Basic Specifications

  • Module height: 169 mm (6.7”)
  • Line speed: 197 FPM
  • Transfer clearance: 3 mm (0.1”)
  • Power voltage: 24V DC
  • Minimum package size: 300 mm (11.8”) x 300 mm (11.8”)
  • Frame length (all sizes): 760 mm (29.9”)

Available Sizes

Size Module (W x L)
Size A 15.5” x 29.9” (394 x 760 mm)
Size B 19.4” x 29.9” (494 x 760 mm)
Size C 23.4” x 29.9” (594 x 760 mm)
Size D 27.3” x 29.9” (694 x 760 mm)

Maximum load weight not specified on available documentation — contact Piedmont Industrial for application guidance.
