PM486XE/XP Motorized Conveyor Roller
Couldn't load pickup availability
- Manufacturer Catalog Download

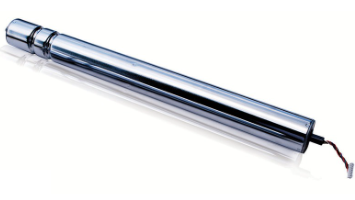

The Itoh Denki PM486XE/XP is a 24V DC brushless motorized roller with an integrated internal driver card, eliminating the need for a separate external controller and simplifying wiring directly to the roller. With a 1.91" (48.6 mm) diameter, single shaft mounting, spring-loaded shaft, and a standard 7 pin JST connector, the XE/XP provides variable speed control via external voltage input (0–10V DC) and a stable speed function across three gear stages. The XP model offers a high torque option for more demanding applications. Both models are controlled through simple RUN, DIR, and speed voltage inputs from any 24V DC switching source.
Key Features
- Brushless DC motor provides long life
- 7/16" plain hex shafts standard
- ABEC 1 bearings
- DOM, zinc plated, carbon steel tube
- Internal driver card simplifies wiring direct to roller
- Stable speed function
- Variable speed with external voltage input (0–10V DC)
- One shaft mounting, cable end
- High torque (XP model)
- Standard 300 mm (11.81") power cable (C030 must be specified in part number)
- Standard 7 pin JST connector (XHP-7)
- For use with terminal block A-B70/A-B80
- Spring loaded shaft roller
Operation
- Continuous or intermittent duty
- Minimum cycle: 1s ON; 1.5s OFF
- Do not exceed 150% of no-load speed
Environment
- Ambient temperature 32~104°F (0~40°C)
- < 90% relative humidity (no condensation)
- No corrosive gases
- Vibration < 0.5G
Protection
- Motor is protected from overheating
- Undervoltage error protection
- Back EMF error protection
Specifications
| Diameter | 1.91" (48.6 mm) |
| Voltage | 24V DC |
| Shaft Type | 7/16" plain hex shaft (standard), spring loaded |
| Shaft Mounting | One shaft mounting, cable end |
| Tube Material | DOM, zinc plated, carbon steel |
| Connector | 7 pin JST connector (XHP-7) |
| Standard Cable Length | 300 mm (11.81") — C030 must be specified in part number |
| Gear Stages Available | 1, 2, and 3 |
| Speed Control | External voltage input 0–10V DC; 10 speed settings standard |
| Signal Type | Must specify when ordering: NN (NPN error output) or NP (PNP error output) |
Available Options
- Lagging — Natural Rubber, Urethane, Nitrile Rubber, Neoprene
Option availability varies. Contact us for part number configuration assistance.
Available Endcap & Tube Options
- Straight Tube (Standard)
- Double Groove (P2) — Standard groove locations: 50 mm / 32 mm
- Poly V End Cap (VG) — For poly V belt drive
- V-Belt Pulley (VP) — For V-belt drive
P1 single groove tube standard at 50 mm. Non-standard groove locations available with P1-OS or P2-OS designation. All shaft configurations available with grooved or straight tube.
Integrated Controller
The PM486XE/XP features an internal driver card — no separate external controller is required. The roller connects directly via a 7 pin JST cable with the following signal wiring:
| Wire Color | Function |
|---|---|
| Red | +24V DC |
| Black | 0V |
| Green | Common (connect to 0V for PNP input; 24V for NPN input) |
| White | RUN Input |
| Violet | DIR Input (to controller) |
| Orange | Speed Variation Input (0–10V DC) |
| Blue | Error Signal Output |
A-B70-G / A-B80-G I/O Terminal Block
An optional I/O terminal block that mounts directly to the conveyor frame mounting bracket:
- Built-in 10kΩ resistor for speed variation
- Speed adjustable from 12.5% to 100%
- Reverse direction slide switch
- Green LED indication for 24V DC power
- Red LED indication for motor error
- 24V DC supplied using cable splice connectors
- RUN and DIR inputs from any 24V DC switching source
- C007 (70 mm) power cable option required for use with this terminal block
- ECF03003 connector wire required for functionality (purchased separately)
A-B70-G = Hex flat up; A-B80-G = Hex point up
Tube Length Considerations
- Standard tube / grooved: TL = BF − 15 mm
- VP (V-belt pulley): TL = BF − 35 mm
- VG (Poly V end cap): TL = BF − 41 mm
Minimum Tube Lengths
| Configuration | Gear Stage 1 | Gear Stage 2 | Gear Stage 3 |
|---|---|---|---|
| Spring loaded shaft | 282 mm (11.10") | 310 mm (12.20") | 332 mm (13.07") |
| Spring loaded + grooved | 334 mm (13.15") | 362 mm (14.25") | 385 mm (15.16") |
| Spring loaded + waterproof | 282 mm (11.10") | 310 mm (12.20") | 332 mm (13.07") |
Mounting Brackets & Accessories
1 mounting bracket is required for this roller.
- Standard Hex Shaft: MBB-071 (hex flat up) / MBB-081 (hex point up)
- Low Profile Hex Shaft: MBC-071 (hex flat up) / MBC-081 (hex point up)
Need a Quote or Configuration Help?
The PM486XE/XP is custom made to order. Error output signal type (NN or NP) must be specified when ordering. Our team can help you configure the right part number and provide pricing.
Request a QuoteAll Itoh Denki motorized conveyor rollers are custom made to order. Option availability varies between models and some options cannot be used in conjunction with others. Specifications are subject to change without prior notice. Please contact us for assistance with part number configuration.
