Molded Extension Cables — 9, 10, and 12 Pin Configurations

SKU: M-F-EXT
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

Itoh Denki Molded Extension Cables allow for easy hookup between Power Moller® roller cables and driver cards. Use extension cables to add length to an existing roller cable, or to allow a 9 pin roller to be compatible with a 10 pin driver card.

Available in 9 pin, 10 pin, and 12 pin configurations with standard lengths of 600 mm, 1,200 mm, and 2,700 mm. Maximum distance from roller to card is 3,000 mm (118.11"). Ambient temperature rating: -22 to 140°F (-30 to 60°C).

Available Configurations

  • 9 pin male to 9 pin female
  • 9 pin male to 10 pin female (adapter)

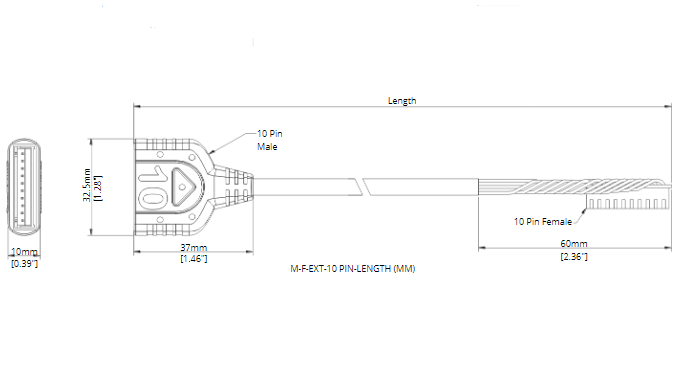

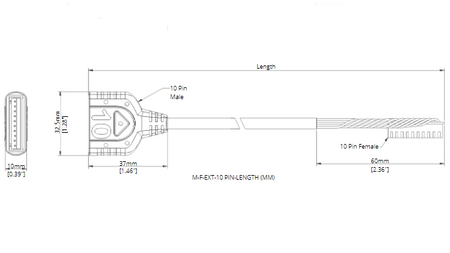

  • 10 pin male to 10 pin female
  • 12 pin male to 12 pin female

Standard Lengths

  • 600 mm (23.62")
  • 1,200 mm (47.24")
  • 2,700 mm (106.30")*

* 2,700 mm option not available in 12 pin cable; a 2,000 mm cable must be ordered instead.

Part Number Format

  • M-F-EXT-[PIN COUNT]-[LENGTH in MM]
  • Example: M-F-EXT-9PIN-600
  • Example: M-F-EXT-9/10PIN-1200

Specifications

  • Maximum roller-to-card distance: 3,000 mm (118.11")
  • Ambient temperature: -22 to 140°F (-30 to 60°C)
  • Molded connectors for reliable connection

Compatible Products

  • All Power Moller DC rollers with 9, 10, or 12 pin connectors
  • All Itoh Denki driver cards and controllers
