MBK-0K1 / MBK-0K1-7 — PM570KT Mounting Brackets

SKU: MBK-0K1
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

MBK-0K1 (cable end) and MBK-0K1-7 (spring loaded end) are dedicated hex shaft mounting brackets designed exclusively for the Itoh Denki PM570KT Power Moller® DC roller. This bracket pair provides the point-up mounting configuration required for the PM570KT’s unique shaft design.

One of each bracket is required per PM570KT installation — MBK-0K1 on the cable end and MBK-0K1-7 on the spring loaded end.

Key Details

  • MBK-0K1: Cable end bracket
  • MBK-0K1-7: Spring loaded end bracket
  • Hex shaft point-up orientation
  • Matchmark notch on right side for correct alignment
  • 1.5° offset for secure shaft grip

Installation

  • 1 each of MBK-0K1 and MBK-0K1-7 required per PM570KT
  • Install with matchmark facing out

Compatible Rollers

  • PM570KT

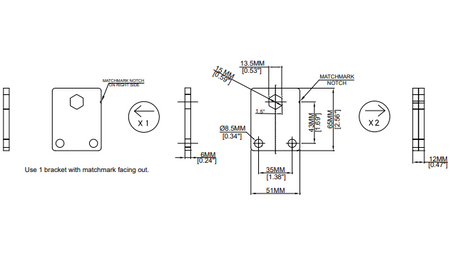

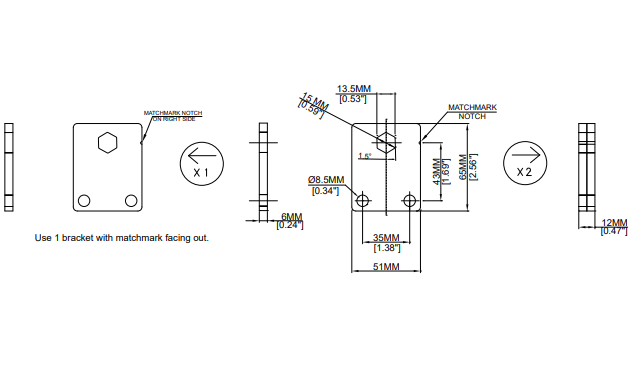

Dimensions

  • MBK-0K1: 51 mm x 13.5 mm [2.01" x 0.53"]
  • Bore: Ø8.5 mm [0.34"]
