MBC-071 / MBC-081 — Low Profile Yoke Style Hex Shaft Mounting Brackets

SKU: MBC-071-081
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

MBC-071 (hex flat up) and MBC-081 (hex point up) are low profile yoke style hex shaft mounting brackets for Itoh Denki Power Moller® DC rollers. Like the standard MBB brackets, the shaft hole of the middle plate is rotated a few degrees to grip the shaft securely when torqued.

These optional low profile brackets provide a reduced-height alternative to the standard MBB brackets while maintaining the same roller compatibility and secure yoke-style mounting. Supplied with M5 x 15 pan head Phillips mounting bolts and hardware.

Key Details

  • MBC-071: Hex flat up orientation
  • MBC-081: Hex point up orientation
  • Low profile yoke style design
  • Rotating shaft hole for secure grip
  • Supplied with M5 x 15 pan head Phillips mounting bolts and hardware
  • 2 mounting holes (5.3 mm dia.) for frame attachment

Installation

  • Nuts must be torqued to 2.2 lb•ft (3 Nm)
  • 1 required for FE models and PM486XE/XP
  • 2 required for PM486FS, PM486FH, and PM486FP (yoke shaft)

Compatible Rollers

  • All FE models (PM486FE, PM570FE, PM605FE)
  • PM486FS
  • PM486FH
  • PM486FP (JR yoke shaft configuration)
  • PM486XE/XP

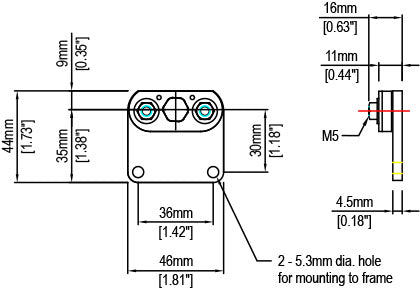

Dimensions

  • Overall: 46 mm x 44 mm [1.81" x 1.73"]
  • Mounting hole spacing: 16 mm [0.63"]
  • Height: 45 mm [1.77"]
