MBB-071 / MBB-081 — Standard Yoke Style Hex Shaft Mounting Brackets

SKU: MBB-071-081
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

MBB-071 (hex flat up) and MBB-081 (hex point up) are standard yoke style hex shaft mounting brackets for Itoh Denki Power Moller® DC rollers. The shaft hole of the middle plate is rotated a few degrees, which grips the shaft securely once the top plate and nuts are tightened to the correct torque.

These brackets are designed for standard mounting of 48.6 mm diameter roller families with JR (yoke style) hex shafts. Supplied with M5 x 15 pan head Phillips mounting bolts and hardware.

Key Details

  • MBB-071: Hex flat up orientation
  • MBB-081: Hex point up orientation
  • Yoke style hex shaft design
  • Rotating shaft hole for secure grip
  • Supplied with M5 x 15 pan head Phillips mounting bolts and hardware
  • 2 mounting holes (5.3 mm dia.) for frame attachment

Installation

  • Nuts must be torqued to 2.2 lb•ft (3 Nm)
  • 1 required for FE models and PM486XE/XP
  • 2 required for PM486FS, PM486FH, and PM486FP (yoke shaft)

Compatible Rollers

  • All FE models (PM486FE, PM570FE, PM605FE)
  • PM486FS
  • PM486FH
  • PM486FP (JR yoke shaft configuration)
  • PM486XE/XP

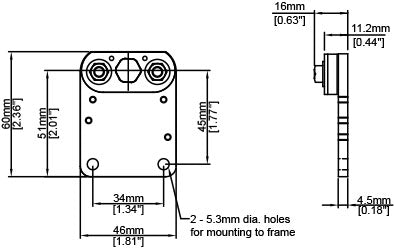

Dimensions

  • Overall: 46 mm x 60 mm [1.81" x 2.36"]
  • Mounting hole spacing: 16 mm [0.63"]
  • Height: 51 mm [2.01"]
