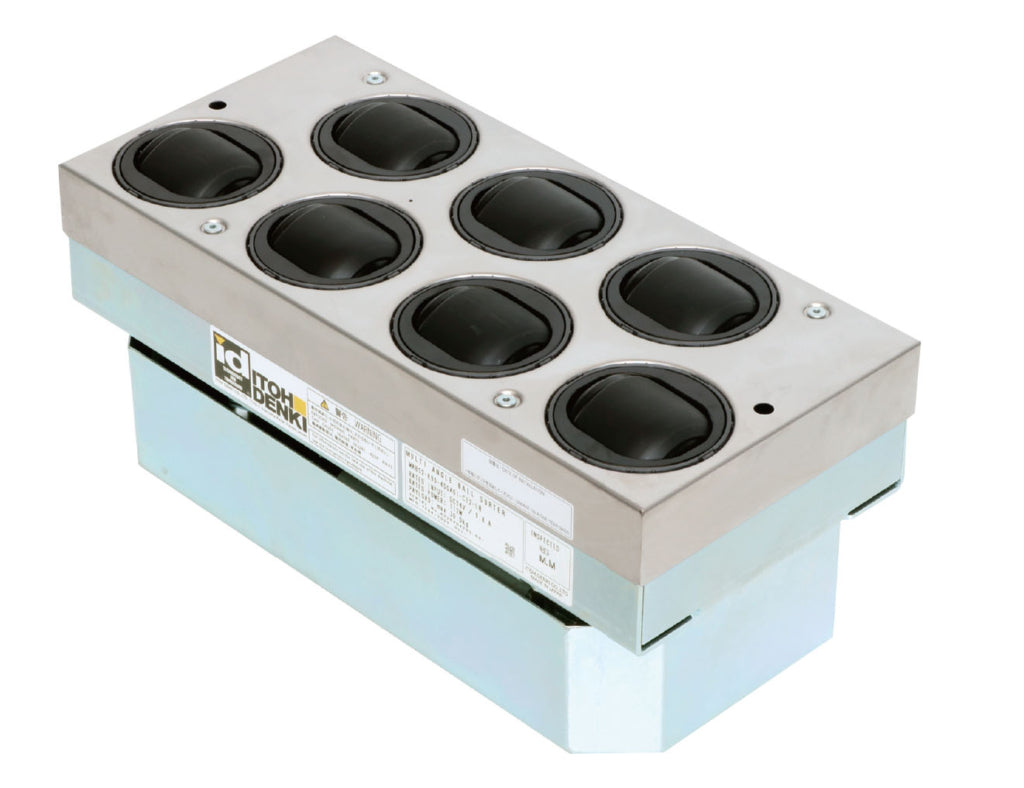

MABS2 Multi Angle Ball Sorter

SKU: MABS2
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

The MABS2 is a 24V DC multi-angle ball sorter module capable of transferring packages at any specified angle — including 30, 45, and 90 degrees — using a motorized ball transfer surface powered by 2 MDRs. Unlike fixed-angle transfers, the MABS2 eliminates pneumatics entirely and can be oriented for a wide range of divert applications.

The MABS2 is scalable: multiple units can be placed side-by-side to create a larger transfer surface, supporting loads up to 239 kg (528 lbs) in an 8-unit configuration. Compatible with the IB-E04F Ethernet/IP controller for Rockwell network integration, or the IB-E06F-UL-M1 driver card.

Key Features

  • 24V DC — safe, low-voltage operation
  • Drop-in installation into existing conveyor frames
  • Transfer at any angle: 30, 45, or 90 degrees
  • Simplified transfer using 2 MDRs — no pneumatics
  • Scalable — multiple units combine for larger transfer surface
  • 8-unit configuration supports up to 239 kg (528 lbs)
  • Transfer capacity: 4300 c/hr
  • IB-E04F compatible for Rockwell Automation network integration

Environment

  • Ambient temperature: 32 to 104°F (0 to 40°C)
  • Humidity: below 90% RH (no condensation)
  • No corrosive gases — indoor installation
  • Vibration: below 0.5G

Applicable Driver Cards

  • (1) IB-E04F Ethernet/IP controller per module
    PNP: IB-E04FP  |  NPN: IB-E04FN
  • (1) IB-E06F-UL-M1 driver card per module
    PNP: IB-E06FP-UL-M1  |  NPN: IB-E06FN-UL-M1

Basic Specifications

  • Roller diameter: (2) 57.0 mm
  • Module height: 175 mm (6.9”)
  • Spine length: 186 mm (7.3”)
  • Line speed: 295 FPM
  • Power voltage: 24V DC
  • Max load (1 unit): 30 kg (66 lbs)
  • Max load (8 units): 239 kg (528 lbs)

Available Sizes & Max Package

Size Module Width Max Package
400 15.7” (398 mm) 11.8” x 25.59”
500 19.6” (498 mm) 15.8” x 25.59”
600 23.5” (598 mm) 19.7” x 25.59”
700 27.5” (698 mm) 23.6” x 25.59”
800 31.4” (798 mm) 27.6” x 25.59”

All sizes: 90 speed code (295 FPM) — spine length fixed at 186 mm (7.3”)
