MA600M Miniature Shock Absorber-Adjustable (metric)
Couldn't load pickup availability
- Item # MA600M
- Energy Capacity lbs/cycle 600
- Energy Capacity lbs/h 600,000
- Effective Weight Min lbs 20
- Effective Weight Max lbs 3,000
Adjustable
Energy capacity 600 in-lbs/Cycle
Stroke 1.00 in

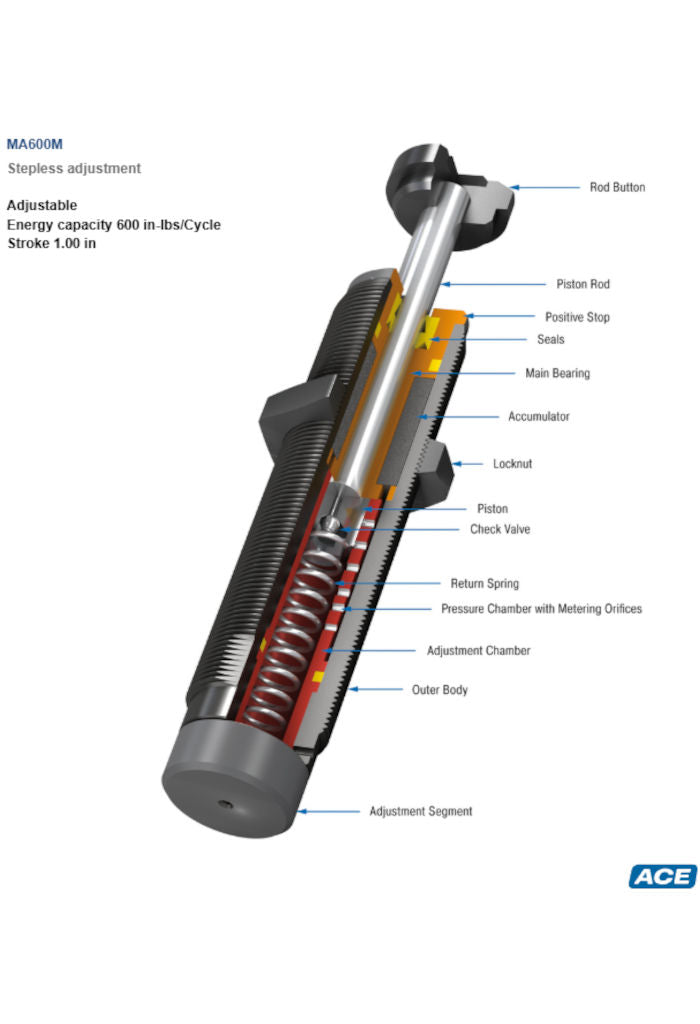

The miniature shock absorbers from the MA30 to MA900 product family can be adjusted and precisely adapted to your requirements. For example, the MA150 displays the rolling diaphragm technology from the MC150 to MC600 family and offers all of the advantages of this technology, such as use in pressure chambers. Thanks to long strokes (including 1.57 in on the MA900) lower reaction forces result, which provide a soft damping characteristic.
All variations of these units are maintenance-free, ready-to-install machine elements and have an integrated positive stop. They provide the best service where application data changes, where the calculation parameters are not clear or where maximum flexibility in the possible usage is required.
These adjustable miniature shock absorbers from ACE can be used to precisely meet the customer's application needs and are therefore found everywhere in industrial, automation and machine engineering and many other applications.
