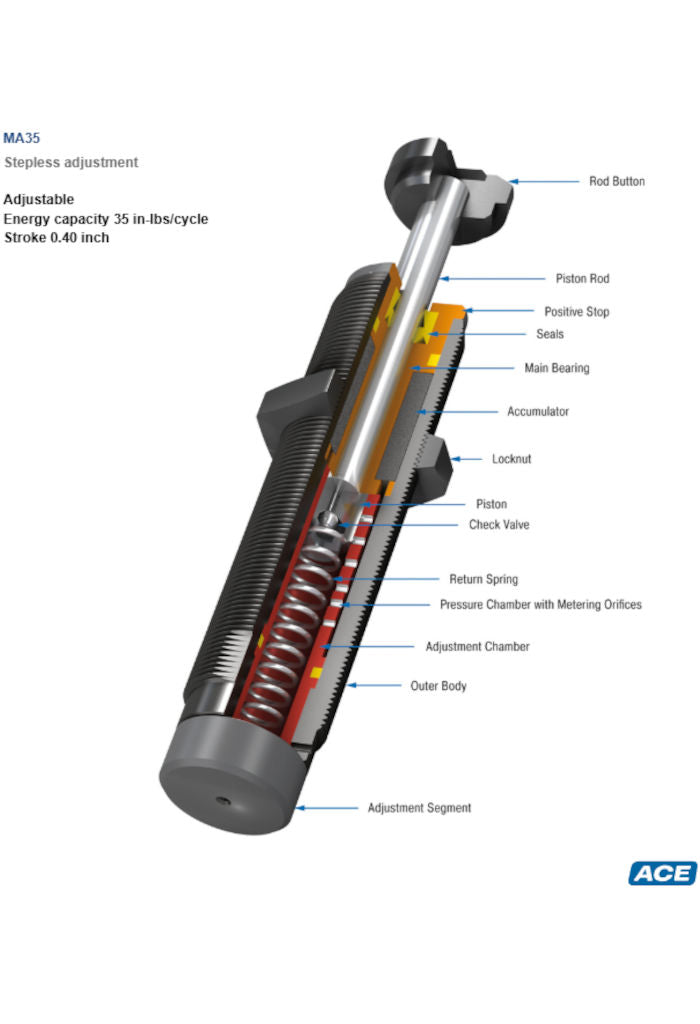

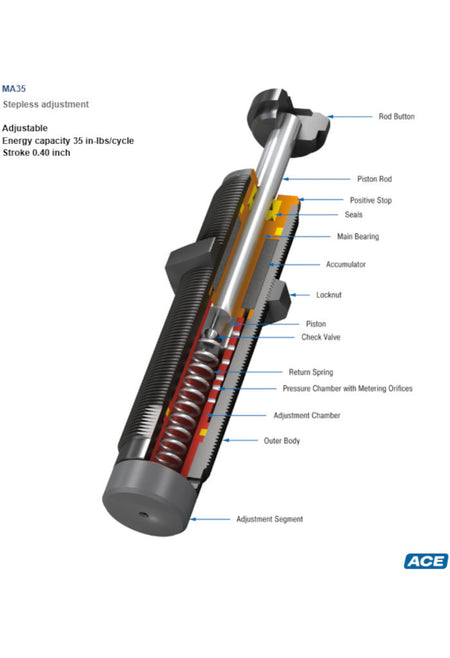

MA35 Miniature Shock Absorber-Hydraulic Feed Control
Couldn't load pickup availability
- Item # MA35
- Energy Capacity lbs/cycle 35
- Energy Capacity lbs/h 53,000
- Effective Weight Min lbs 13
- Effective Weight Max lbs 125
Adjustable
Compression force 2 lbs to 800 lbs
Stroke 0.28 in to 1.58 in
Many application options: the hydraulic feed controls in models MA and MVC are similar to that of the VC model. However, these hydraulic controls have been designed for applications that require less precision.
There are also plenty of accessories for the MA and MVC models. All products are ready-to-install, maintenance-free, stable in temperature and avoid stick-slip effect. Speeds from 0.47““/min. (12 mm/min.) can be driven at a low thrust force using the adjustment screw on the base of the hydraulic control.
Hydraulic feed controls with the designations MA and MVC are especially used in handling modules or linear carriages and also for applications with changing usage data.
