IB-E Connector Kits — Basic and I/O Kits for Ethernet/IP Controllers

SKU: IB-E-KIT
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

IB-E Connector Kits provide the WAGO wire-side connectors required for Itoh Denki IB-E series Ethernet/IP controllers. The IB-E Basic Connector Kit is required for the IB-E cards to function. The IB-E I/O Connector Kit is optional and enables discrete I/O connectivity.

Kits are sold separately from the IB-E driver cards. Wire-side connectors are available from various sources but are not provided as standard with the IB-E cards.

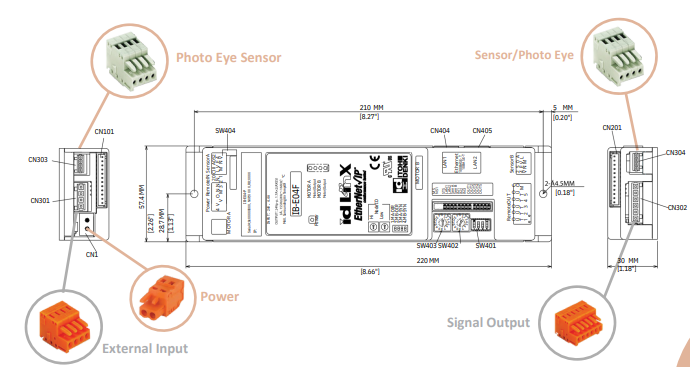

IB-E Basic Kit (Required)

  • Power connector: WAGO 231-302 / 026-000 (qty 1)
  • Photo eye sensor connector: WAGO 733-104 (qty 2)
  • WAGO tool (733): 733-191 (qty 1)*
  • WAGO tool (231): 231-231 (qty 1)*

* WAGO tools are not provided per kit number ordered but additional tools are available for purchase.

IB-E I/O Kit (Optional)

  • External input connector: WAGO 734-204 (qty 1)
  • Signal output connector: WAGO 734-206 (qty 1)
  • WAGO tool (734): 734-231 (qty 1)*

Compatible Controllers

  • IB-E03B
  • IB-E04F
  • IB-E04F-CR-HT.1

Important Notes

  • The Basic Kit is required for IB-E card functionality
  • The I/O Kit is optional for discrete I/O connectivity
  • Kits sold separately from the IB-E driver cards
  • WAGO tools are shared across kits and only need to be purchased once
