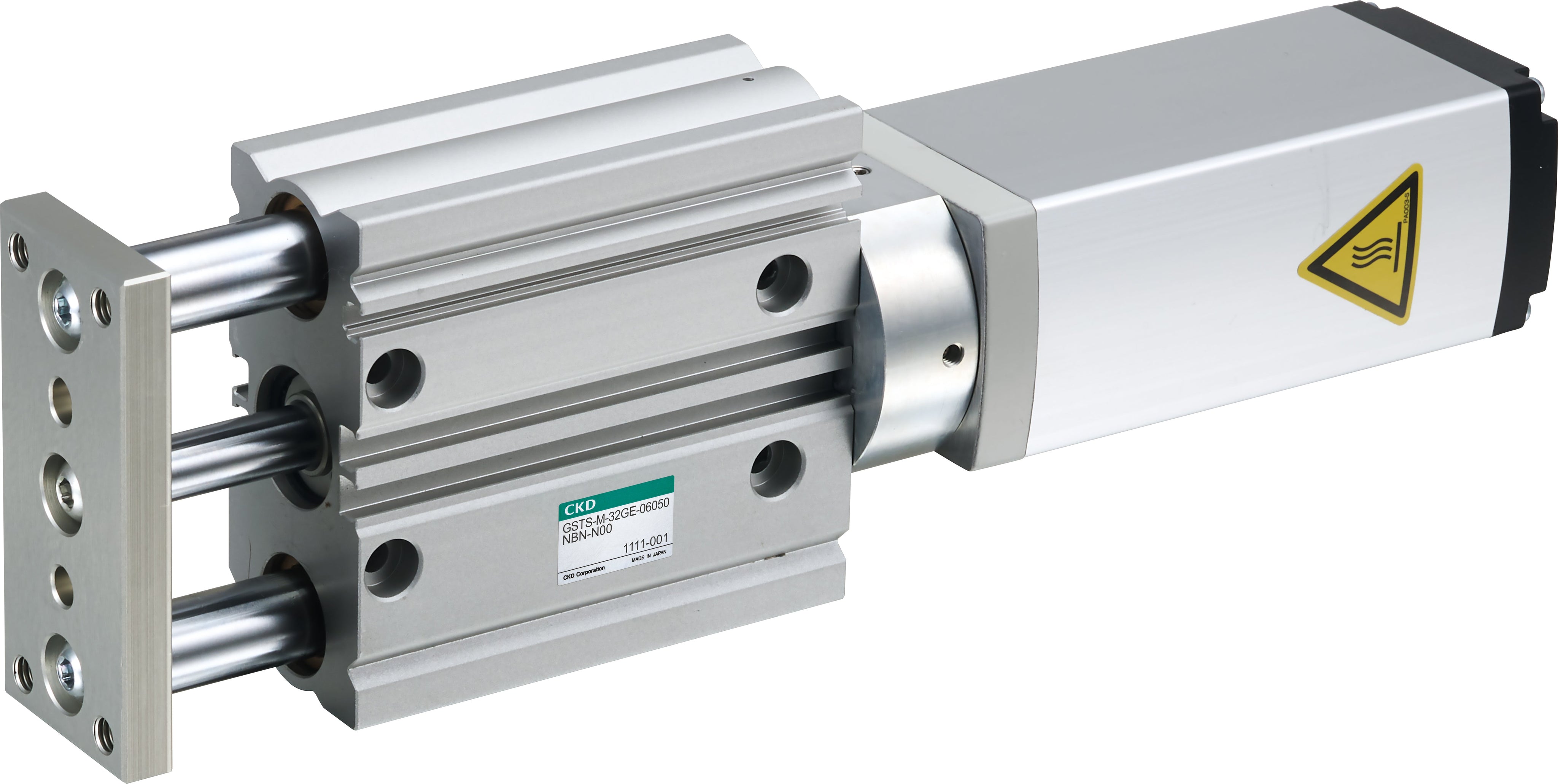

GSTS-M-20GE-09050BCN-R10-F — CKD GSTS Electric Actuator, Short Stroke Table Type
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,127.19
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, short stroke table type, size 20, 9 mm lead, 50 mm stroke, with brake, incremental encoder, movable 10m, steel end plate
| Model Number | GSTS-M-20GE-09050BCN-R10-F |
| Series | GSTS |
| Size | 20 |
| Screw Lead | 9 |
| Stroke | 50 |
| Brake | With Brake |
| Encoder | Incremental Encoder |
| Relay Cable | Movable 10m |
| End Plate Material | Steel End Plate |
| Compatible Controller | ECMG/ECG-A |
| Weight | 3.4 kg |
| Dimensions (V × W × H) | 302.7 × 50.0 × 83 mm |
