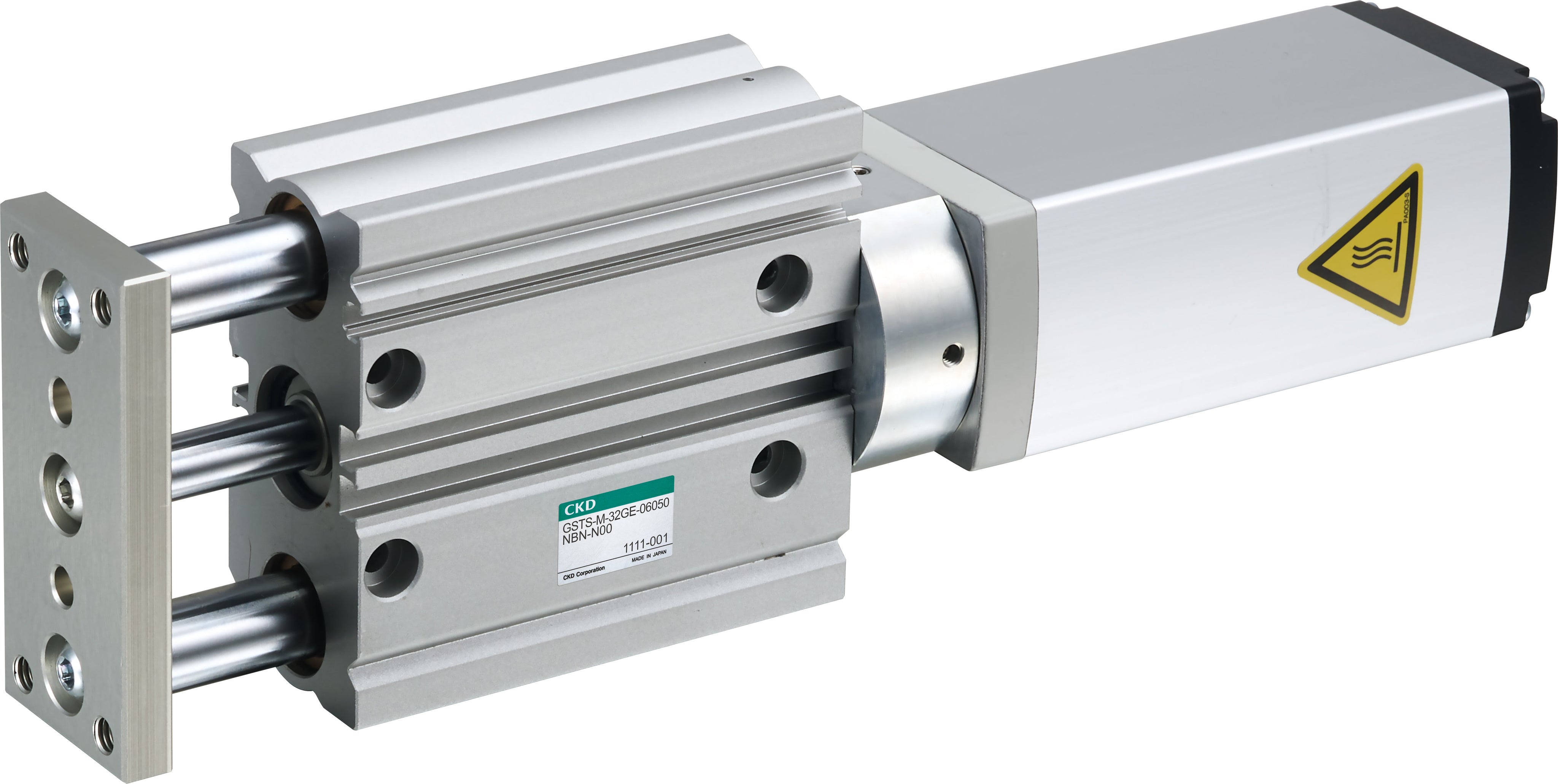

GSTS-M-20GE-09050BBN-N00 — CKD GSTS Electric Actuator, Short Stroke Table Type
Call Us for Volume Discount Availability 704.519.4661
Regular price
$909.39
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, short stroke table type, size 20, 9 mm lead, 50 mm stroke, with brake, absolute encoder, connector only, aluminum end plate
| Model Number | GSTS-M-20GE-09050BBN-N00 |
| Series | GSTS |
| Size | 20 |
| Screw Lead | 9 |
| Stroke | 50 |
| Brake | With Brake |
| Encoder | Absolute Encoder |
| Relay Cable | Connector Only |
| End Plate Material | Aluminum End Plate |
| Compatible Controller | ECMG/ECG-A |
| Weight | 1.9 kg |
| Dimensions (V × W × H) | 302.7 × 50.0 × 83 mm |
