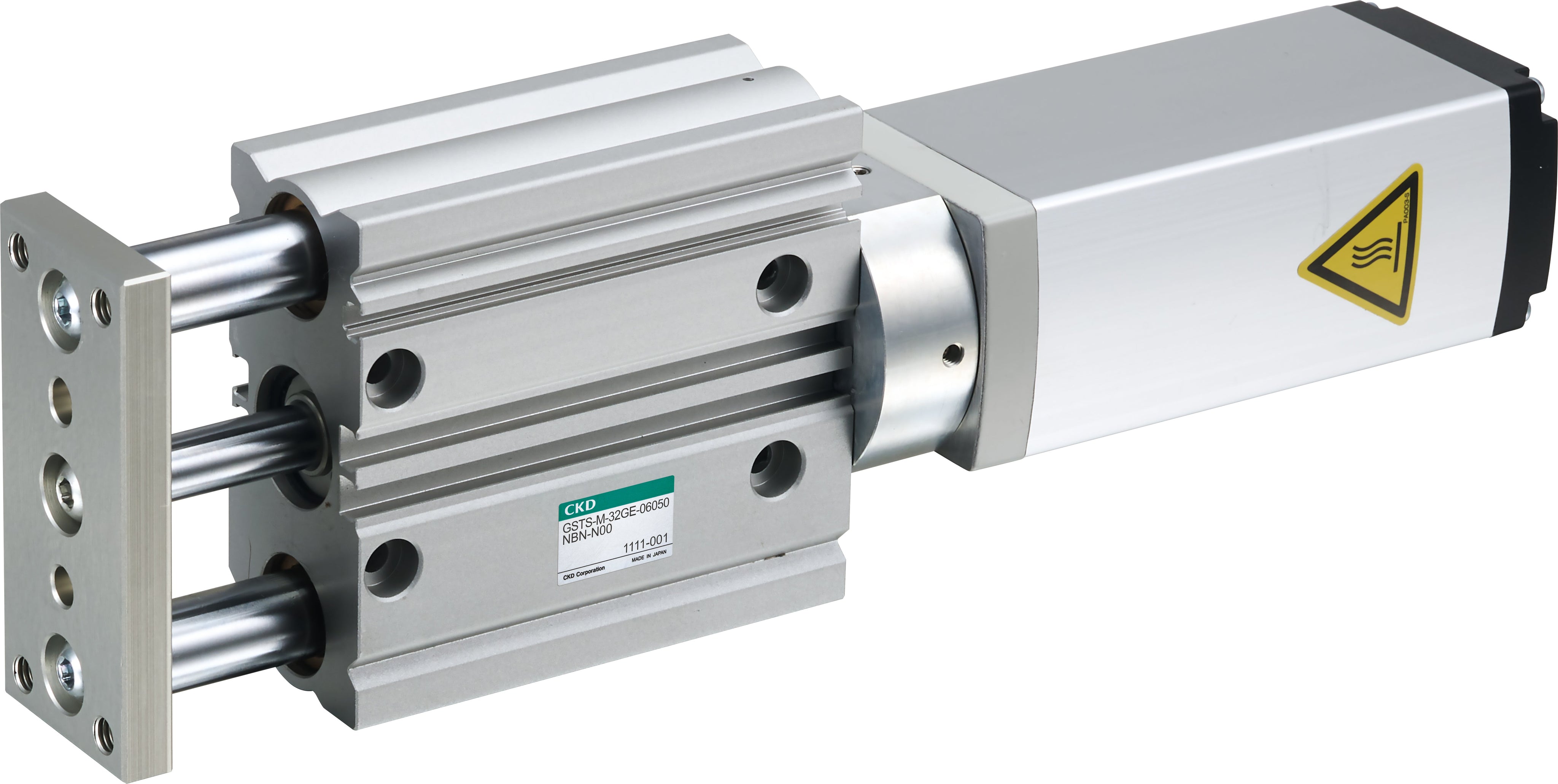

GSTS-M-20GE-09025NBN-R05-F — CKD GSTS Electric Actuator, Short Stroke Table Type
Call Us for Volume Discount Availability 704.519.4661
Regular price
$887.78
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, short stroke table type, size 20, 9 mm lead, 25 mm stroke, no brake, absolute encoder, movable 5m, steel end plate
| Model Number | GSTS-M-20GE-09025NBN-R05-F |
| Series | GSTS |
| Size | 20 |
| Screw Lead | 9 |
| Stroke | 25 |
| Brake | No Brake |
| Encoder | Absolute Encoder |
| Relay Cable | Movable 5m |
| End Plate Material | Steel End Plate |
| Compatible Controller | ECMG/ECG-A |
| Weight | 2.0 kg |
| Dimensions (V × W × H) | 211.2 × 50.0 × 83 mm |
