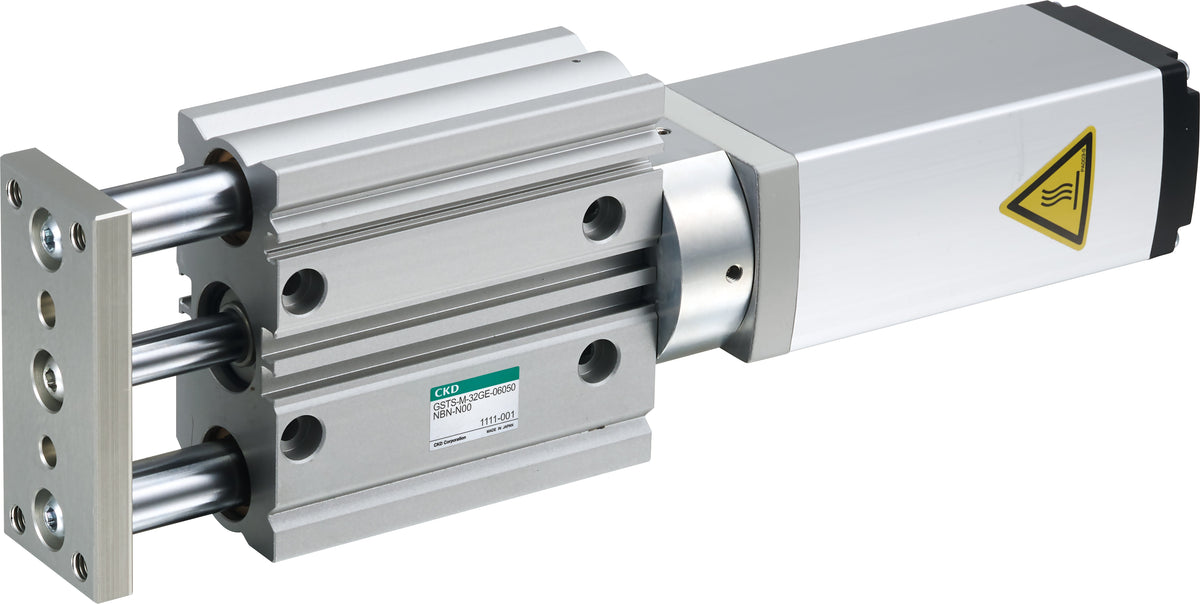

GSTS-M-20GE-09025BCN-S01-F — CKD GSTS Electric Actuator, Short Stroke Table Type
Call Us for Volume Discount Availability 704.519.4661
Regular price
$962.66
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, short stroke table type, size 20, 9 mm lead, 25 mm stroke, with brake, incremental encoder, fixed 1m, steel end plate
| Model Number | GSTS-M-20GE-09025BCN-S01-F |
| Series | GSTS |
| Size | 20 |
| Screw Lead | 9 |
| Stroke | 25 |
| Brake | With Brake |
| Encoder | Incremental Encoder |
| Relay Cable | Fixed 1m |
| End Plate Material | Steel End Plate |
| Compatible Controller | ECMG/ECG-A |
| Weight | 1.88 kg |
| Dimensions (V × W × H) | 277.7 × 50.0 × 83 mm |
