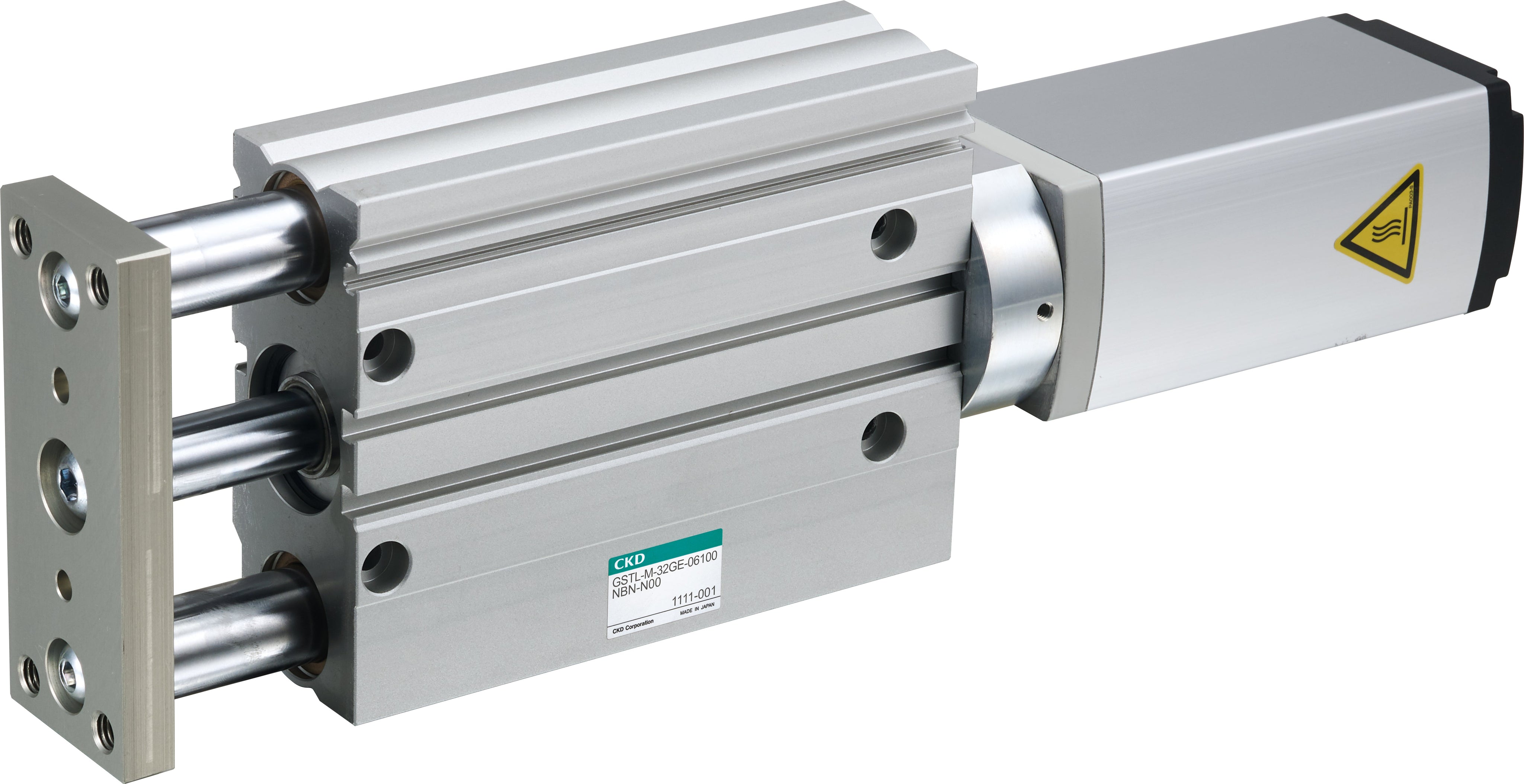

GSTL-M-50GE-12150NBN-R10 — CKD GSTL Electric Actuator, Long Stroke Table Type
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,394.72
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, long stroke table type, size 50, 12 mm lead, 150 mm stroke, no brake, absolute encoder, movable 10m, aluminum end plate
| Model Number | GSTL-M-50GE-12150NBN-R10 |
| Series | GSTL |
| Size | 50 |
| Screw Lead | 12 |
| Stroke | 150 |
| Brake | No Brake |
| Encoder | Absolute Encoder |
| Relay Cable | Movable 10m |
| End Plate Material | Aluminum End Plate |
| Compatible Controller | ECMG/ECG-A |
| Weight | 9.4 kg |
| Dimensions (V × W × H) | 398.7 × 81.2 × 147 mm |
