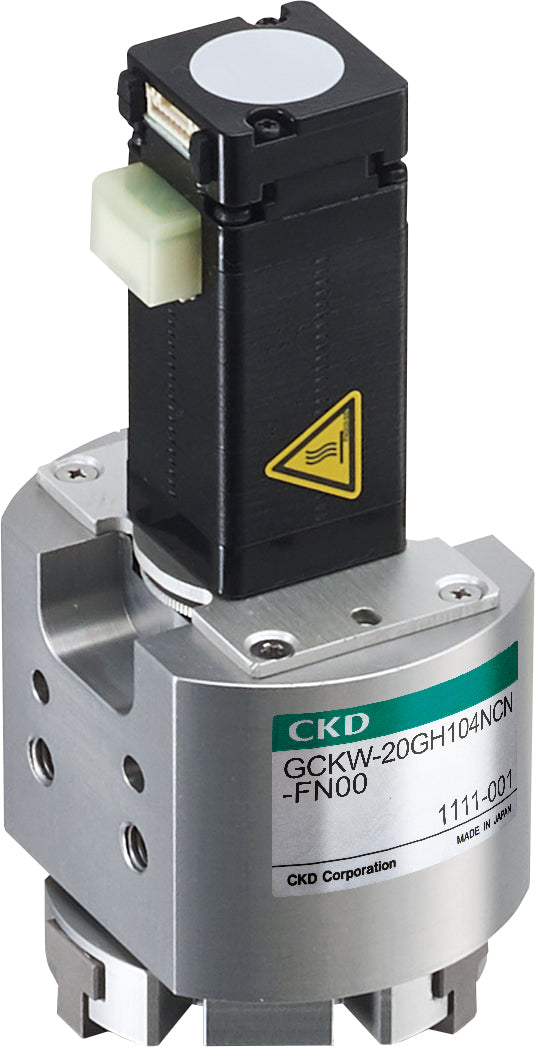

GCKW-16GH104NCN-FR10 — CKD GCKW Electric Actuator, Compact Gripper
Call Us for Volume Discount Availability 704.519.4661
Regular price
$1,715.14
Couldn't load pickup availability
- Manufacturer Catalog Download
Stepper actuator, compact gripper type, size 16, 4 mm stroke, front connector, movable 10m
| Model Number | GCKW-16GH104NCN-FR10 |
| Series | GCKW |
| Size | 16 |
| Stroke | 4 |
| Connector Direction | Front Connector |
| Relay Cable | Movable 10m |
| Encoder | Incremental encoder |
| Compatible Controller | ECMG/ECG-B |
| Weight | 1.75 kg |
| Dimensions (V × W × H) | 102.5 × 30 × 37.0 mm |
