FO-120-- Variable Stroke Straight Line Action Foot Mount Clamp
Call Us for Volume Discount Availability 704.519.4661
Regular price
$414.40
Couldn't load pickup availability

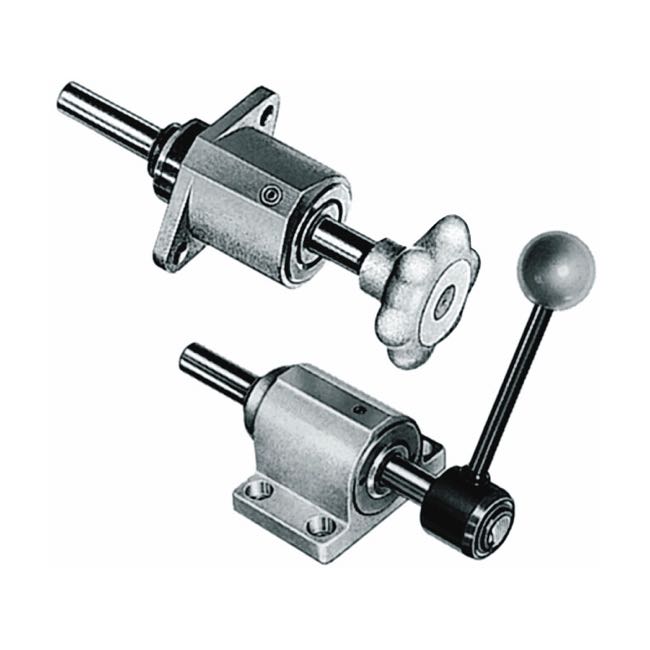

Variable stroke plunger clamp with foot mount body
- 600 lb. Capacity
- Can accept plunger strokes of 100 mm - 300 mm
- 3 mm clamping stroke
| Maximum Holding Capacity (N) | 3,000 |
| Maximum Holding Capacity (lbsf) | 675 |
| Plunger Travel (mm) | 100, 200, 300 |
| Plunger Travel (in) | 3.94, 7.87, 11.81 |
| Plunger Height (mm) | 20.0 |
| Plunger Height (in) | 0.790 |
| Operating Method | Two-Hand/Plunger-Hand Lever |
| Clamping Force With (N) | 100 |
| Operating Force (N) | 1,900 |
| Rapid Stroke (mm) | 100, 200, 300 |
| Max Clamping Stroke (mm) | 5.0 |
| Base Mounting Style | Foot |
| Order Plunger Separately? | Yes |
| Weight (kg) | 0.54 |
| Weight (lb) | 1.19 |
| Product Series Description | Variable Stroke Straight Line Action Clamp (Rako) |
