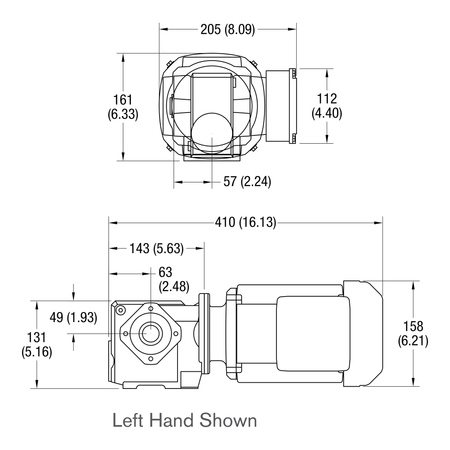

Dorner FlexMove Direct Mount SEW gearmotor dimensional drawing

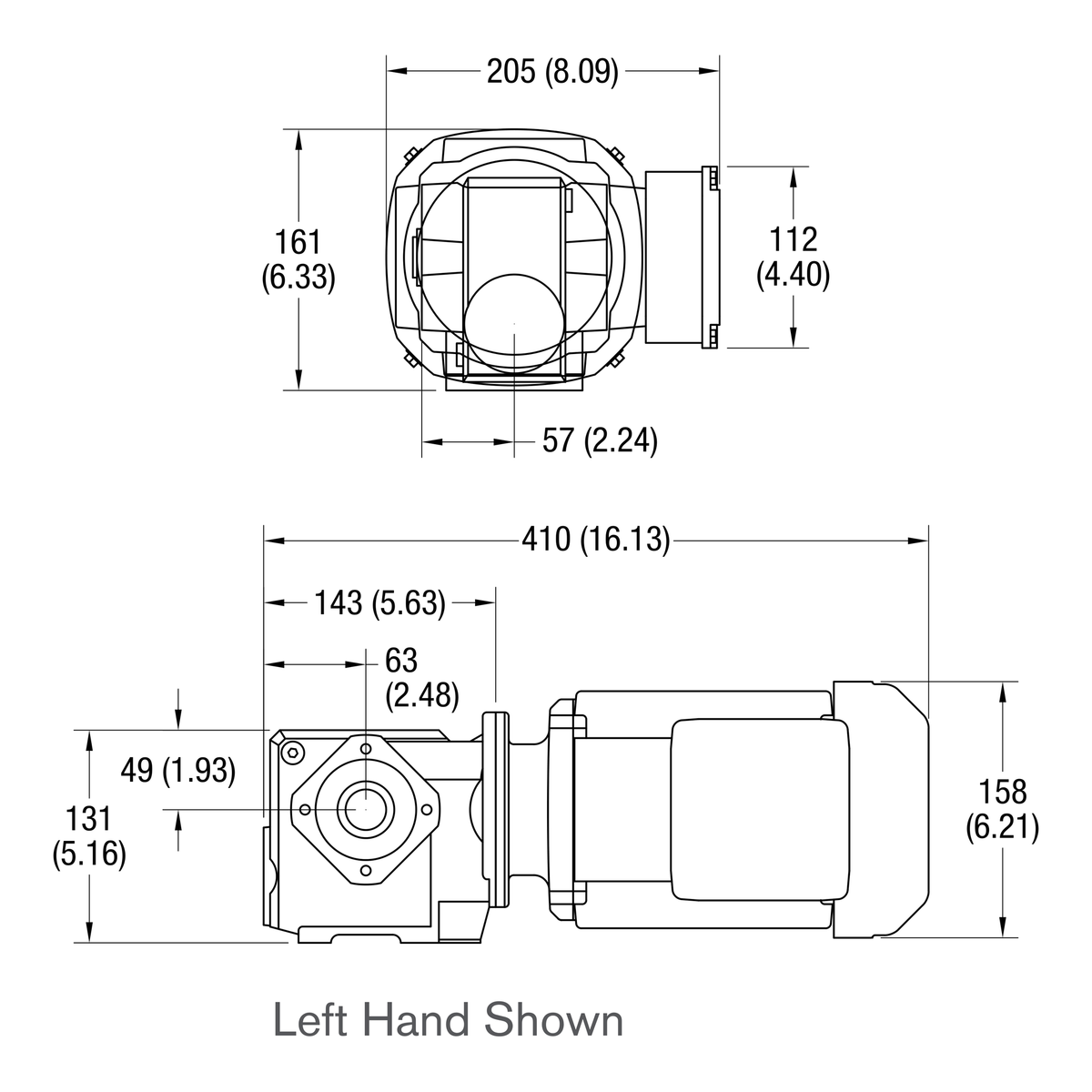

Dorner FlexMove Direct Mount SEW gearmotor dimensional drawing
Dorner

Dorner FMM013RDS423EN FlexMove Gearmotor, Fixed Speed or VFD, Direct Mount SEW, Right Hand, 1 Hp, 130 RPM

SKU: FMM013RDS423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,492.00

Dorner FlexMove direct mount SEW SA37-size gearmotor, right-hand, for FlexMove direct-drive units ordered with a 20 mm drive shaft. Rated for fixed-speed operation or variable-speed operation with a VFD.

1 Hp (0.75 kW), 130 RPM, 425 in-lb (48 Nm), 230/460 V, 3 phase, 60 Hz, 3.1 / 1.57 A.

Chain speed at 60 Hz: 171.3 ft/min (52.2 m/min) on FK, FS, FM, FU and FV systems; 180.8 ft/min (55.1 m/min) on FC and FL systems.

Sealed, totally enclosed fan-cooled. Wiring by others. Right-hand gearmotors match right-hand drive units. When buying a gearmotor without a starter, supply your own on/off switch and motor overload protection.
  • Conveyor Series
    • FlexMove
  • Gearbox Type 90° right angle
  • Motor Type AC fixed or VFD
  • Output Speed (RPM) 130
  • Output Torque (in-lb) 425
  • Output Torque (Nm) 48
  • Motor Power (Hp) 1 Hp
  • Motor Power (kW) 0.75
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency 60 Hz (VFD compatible)
  • Full Load Amps 3.1 / 1.57 A
  • Motor Mount SEW SA37
