FL-160-- Variable Stroke Straight Line Action Flange Mount Clamp
Call Us for Volume Discount Availability 704.519.4661
Regular price
$528.62
Couldn't load pickup availability

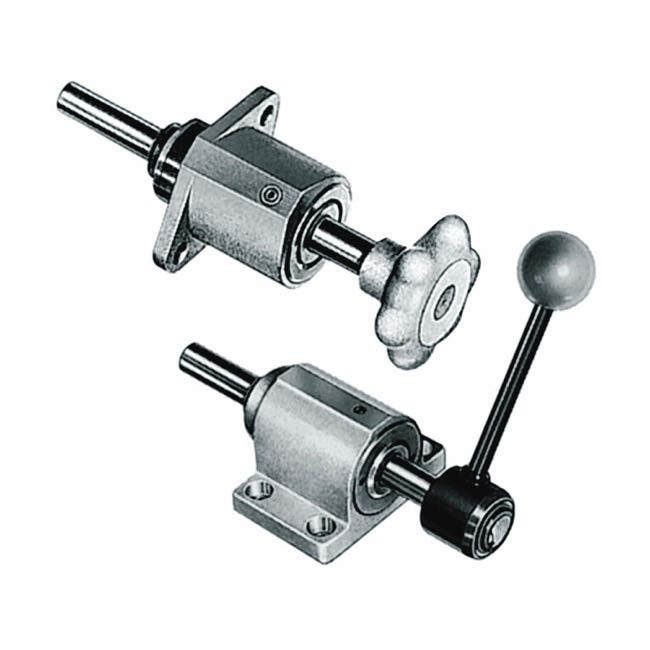

Variable stroke plunger clamp with front flange mount body
- 2,000 lb. Capacity
- Can accept plunger strokes of 100 mm - 300 mm
- 4 mm clamping stroke
| Maximum Holding Capacity (N) | 9,000 |
| Maximum Holding Capacity (lbsf) | 2,020 |
| Clamping Force (N) | 100 |
| Clamping Range (in) | 73.750 |
| Plunger Travel (mm) | 100, 200, 300 |
| Plunger Travel (in) | 3.94, 7.87, 11.81 |
| Plunger Height (mm) | 28.0 |
| Plunger Height (in) | 1.100 |
| Operating Method | Two-Hand/Plunger-Hand Lever |
| Operating Force (N) | 2,500 |
| Rapid Stroke (mm) | 100, 200, 300 |
| Max Clamping Stroke (mm) | 4.0 |
| Base Mounting Style | Flange |
| Order Plunger Separately? | Yes |
| Weight (kg) | 1.13 |
| Weight (lb) | 2.49 |
| Product Series Description | Variable Stroke Straight Line Action Clamp (Rako) |
| Product Function | Clamping |
| Product Family | Manual Clamping |
| Product Group | Variable-stroke Straight-line Action Clamps |
