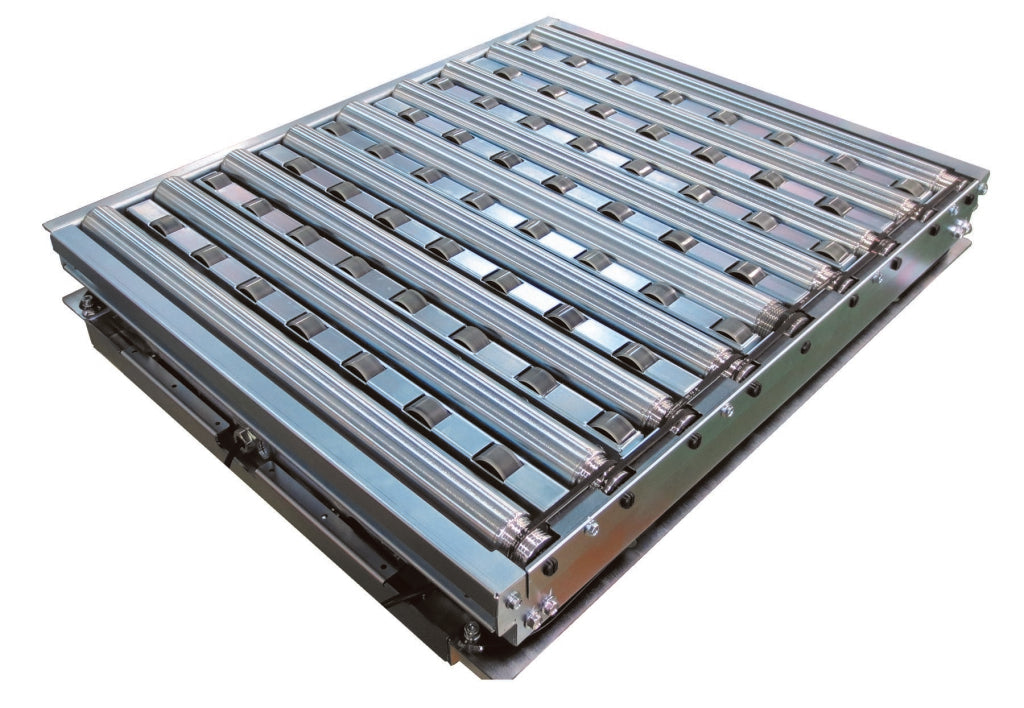

F-RAT-U225 Flat Right Angle Transfer

SKU: F-RAT-U225
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

The F-RAT-U225 is a 24V DC flat right angle transfer module that uses Itoh Denki’s patented Lift-Lower technology with both rollers and wheels to achieve smooth 90° directional divert. With a low 125 mm (4.9”) module height and a minimum package size of 225 mm x 225 mm, it handles smaller packages than the F-RAT-S300 and drops directly into existing conveyor frames without pneumatics.

Available in 10 size configurations including dual-motor options for wider widths, the F-RAT-U225 is compatible with Itoh Denki’s IB-E03B Ethernet/IP controllers or CB-016S7 driver cards.

Key Features

  • 24V DC — safe, low-voltage operation
  • Low profile: 125 mm (4.9”) module height
  • Drop-in installation into existing conveyor frames
  • 90° transfer: forward, backward, left, and right movement
  • Patented Itoh Denki Lift-Lower technology — rollers and wheels change position to meet product
  • Simplified transfer using MDR — no pneumatics
  • Dual-motor configurations available for wider sizes
  • Transfer capacity: 2500 c/hr (based on 13.8” x 15.4”, 66 lb. package)

Environment

  • Ambient temperature: 32 to 104°F (0 to 40°C) — no freezing
  • Humidity: below 90% RH (no condensation)
  • No corrosive gases
  • Vibration: below 0.5G

Applicable Driver Cards

  • (2) IB-E03B Ethernet/IP controllers per module
    PNP: IB-E03BP  |  NPN: IB-E03BN
  • (3) CB-016S7 driver cards per module
    PNP: CB-016P7  |  NPN: CB-016N7

Basic Specifications

  • Module height: 125 mm (4.9”)
  • Line speed: 56 or 197 FPM
  • Power voltage: 24V DC
  • Minimum package size: 225 mm (8.9”) x 225 mm (8.9”)
  • Maximum load: 50 kg (110 lbs) at all sizes and speeds

Available Sizes

Model Module (W x L)
6040 15.5” x 23.4”
6050 19.5” x 23.4”
6060 23.4” x 23.4”
6070 * 27.3” x 23.4”
6080 * 31.3” x 23.4”
9040 15.5” x 35.2”
9050 19.5” x 35.2”
9060 23.4” x 35.2”
9070 * 27.3” x 35.2”
9080 * 31.3” x 35.2”

* Denotes dual motor configuration
