F-RAT-S300 Flat Right Angle Transfer

SKU: F-RAT-S300
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

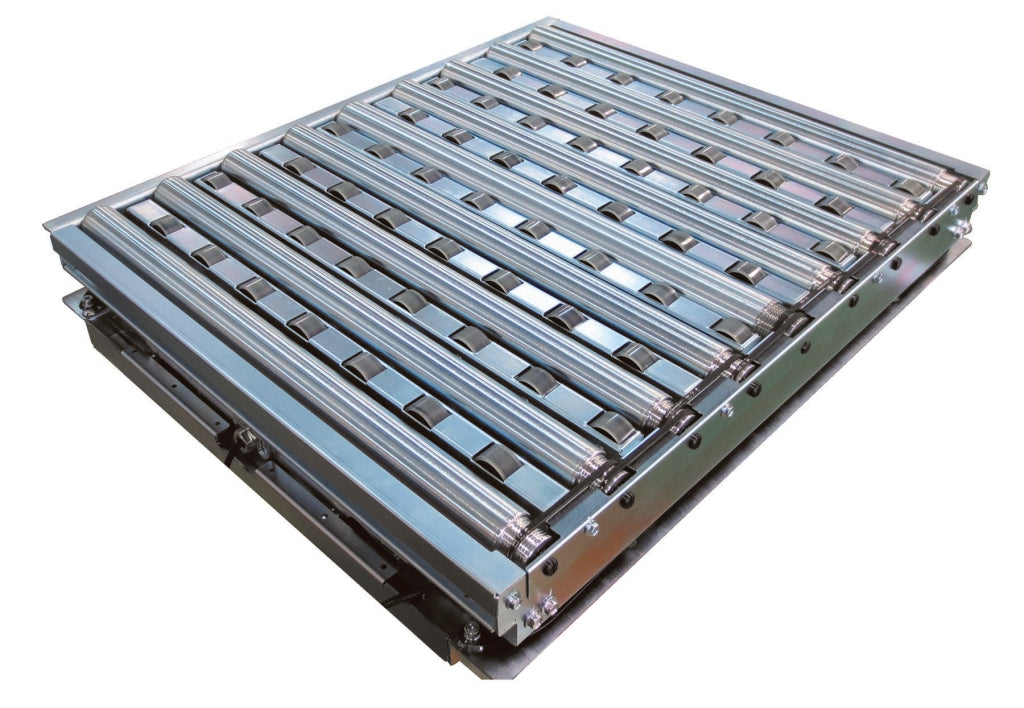

The F-RAT-S300 is a 24V DC flat right angle transfer module designed for 90° divert applications within standard conveyor frames. Using Itoh Denki’s patented Lift-Lower technology, the module’s rollers and belts change position to meet the product — enabling smooth forward, backward, left, and right directional movement without pneumatics.

Built around 3 MDRs and available in four widths, the F-RAT-S300 is a drop-in solution for facilities looking to add directional transfer to an existing roller conveyor line. Controlled with Itoh Denki’s IB-E03B Ethernet/IP controllers or CB-016S7 driver cards.

Key Features

  • 24V DC — safe, low-voltage operation
  • Drop-in installation into existing conveyor frames
  • 90° transfer: forward, backward, left, and right movement
  • Patented Itoh Denki Lift-Lower technology
  • Simplified transfer using 3 MDRs — no pneumatics
  • PNP or NPN sensor output selectable
  • Transfer capacity: 2500 c/hr (based on 13.8” x 15.4”, 66 lb. package)

Environment

  • Ambient temperature: 32 to 104°F (0 to 40°C)
  • Humidity: below 90% RH (no condensation)
  • No corrosive gases — indoor installation
  • Vibration: below 0.5G

Applicable Driver Cards

  • (2) IB-E03B Ethernet/IP controllers per module
    PNP: IB-E03BP  |  NPN: IB-E03BN
  • (3) CB-016S7 driver cards per module
    PNP: CB-016P7  |  NPN: CB-016N7

Basic Specifications

  • Roller diameter: 50 mm
  • Module height: 170 mm (6.69”)
  • Length (spine direction): 30”
  • Line speed: 56, 197, or 295 FPM
  • Transfer clearance: 10 mm (0.39”)
  • Power voltage: 24V DC
  • Minimum package size: 300 mm (11.8”) x 300 mm (11.8”)

Available Sizes & Max Package

Size Module (W x L) Max Package
A 14.9” x 29.8” 11.8” x 25.6”
B 19.6” x 29.8” 15.7” x 25.6”
C 23.5” x 29.8” 19.7” x 25.6”
D 27.4” x 29.8” 23.6” x 25.6”

Maximum Load Weight

Speed Code Size A Sizes B, C, D
17 (56 FPM) 37.5 kg (82.5 lbs) 50 kg (110 lbs)
60 (197 FPM) 37.5 kg (82.5 lbs) 50 kg (110 lbs)
90 (295 FPM) 10 kg (22 lbs) 10 kg (22 lbs)
