F-RAT-NX75 Flat Right Angle Transfer

SKU: F-RAT-NX75
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

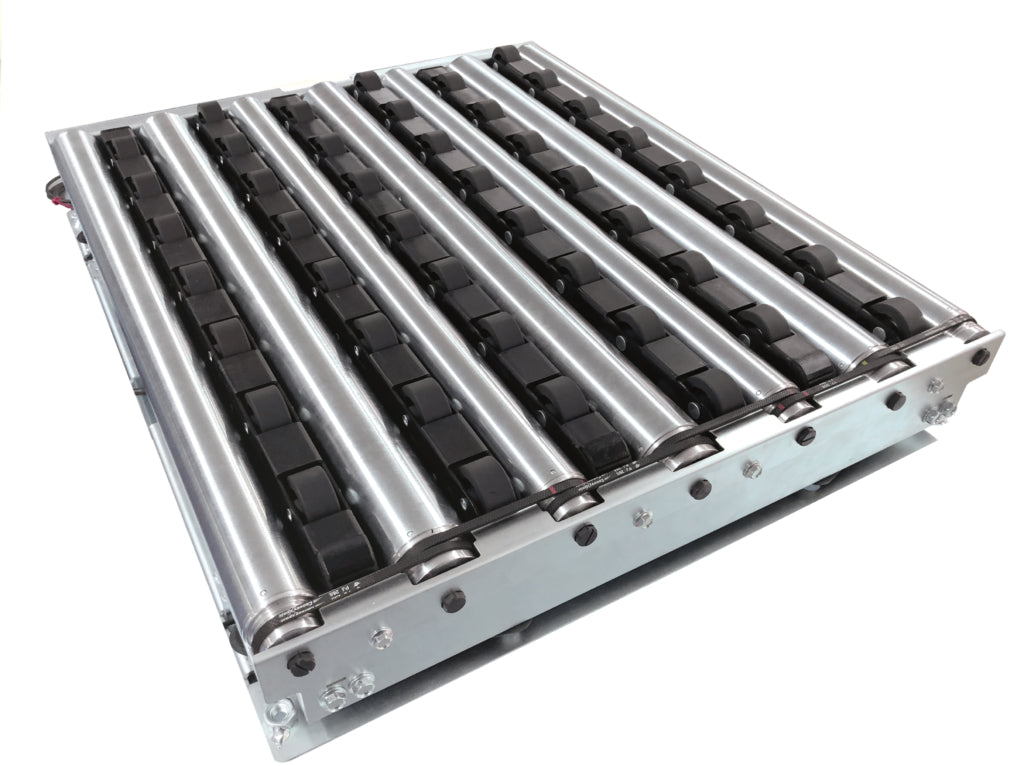

The F-RAT-NX75 is a low-profile 24V DC flat right angle transfer module offering 90° directional divert capability within a compact 125 mm (4.9”) module height. Designed for drop-in installation into existing conveyor frames, it handles smaller packages — down to 225 mm x 225 mm — and operates without pneumatics using 3 MDRs.

The NX75 is available in 15 size configurations across three spine lengths, and is compatible with Itoh Denki’s IB-E series Ethernet/IP controllers or CB series driver cards depending on sensor output selection.

Key Features

  • 24V DC — safe, low-voltage operation
  • Low profile: 125 mm (4.9”) module height
  • Drop-in installation into existing conveyor frames
  • 90° transfer: forward, backward, left, and right movement
  • Simplified transfer using 3 MDRs — no pneumatics
  • 15 size configurations across three spine lengths
  • Transfer capacity: 2250 c/hr (based on 13.8” x 15.4”, 66 lb. package)

Environment

  • Ambient temperature: 32 to 104°F (0 to 40°C)
  • Humidity: below 90% RH (no condensation)
  • No corrosive gases — indoor installation
  • Vibration: below 0.5G

Applicable Driver Cards

  • (1) IB-E03B and (1) IB-E04F per module
    PNP: IB-E03BP + IB-E04FP  |  NPN: IB-E03BN + IB-E04FN
  • (2) CB-016BS7-UL and (1) CBK-109F per module
    PNP: CB-016BP7-UL + CBK-109FP  |  NPN: CB-016BN7-UL + CBK-109FN

Basic Specifications

  • Roller diameters: (2) 48.6 mm and (1) 57.0 mm
  • Module height: 125 mm (4.9”)
  • Spine lengths: 23.4”, 31.3”, or 35.2”
  • Line speed: 56 or 197 FPM
  • Transfer clearance: 7 mm (0.2”)
  • Power voltage: 24V DC
  • Minimum package size: 225 mm (8.8”) x 225 mm (8.8”)
  • Maximum load: 50 kg (110 lbs) at all sizes and speeds

Available Sizes

Model Module (W x L) Max Package
6040 15.6” x 23.4” 11.6” x 19.5”
6050 19.5” x 23.4” 15.6” x 19.5”
6060 23.4” x 23.4” 19.5” x 19.5”
6070 27.4” x 23.4” 23.4” x 19.5”
6080 31.3” x 23.4” 27.4” x 19.5”
7540 15.6” x 29.3” 11.6” x 25.4”
7550 19.5” x 29.3” 15.6” x 25.4”
7560 23.4” x 29.3” 19.5” x 25.4”
7570 27.4” x 29.3” 23.4” x 25.4”
7580 31.3” x 29.3” 27.4” x 25.4”
9040 15.6” x 35.2” 11.6” x 31.3”
9050 19.5” x 35.2” 15.6” x 31.3”
9060 23.4” x 35.2” 19.5” x 31.3”
9070 27.4” x 35.2” 23.4” x 31.3”
9080 31.3” x 35.2” 27.4” x 31.3”
