EBR-05GE-00-050350NBN-CR05 — CKD EBR Electric Actuator, Rod with Built-in Guide
Call Us for Volume Discount Availability 704.519.4661
Regular price
$889.43
Couldn't load pickup availability
- Manufacturer Catalog Download

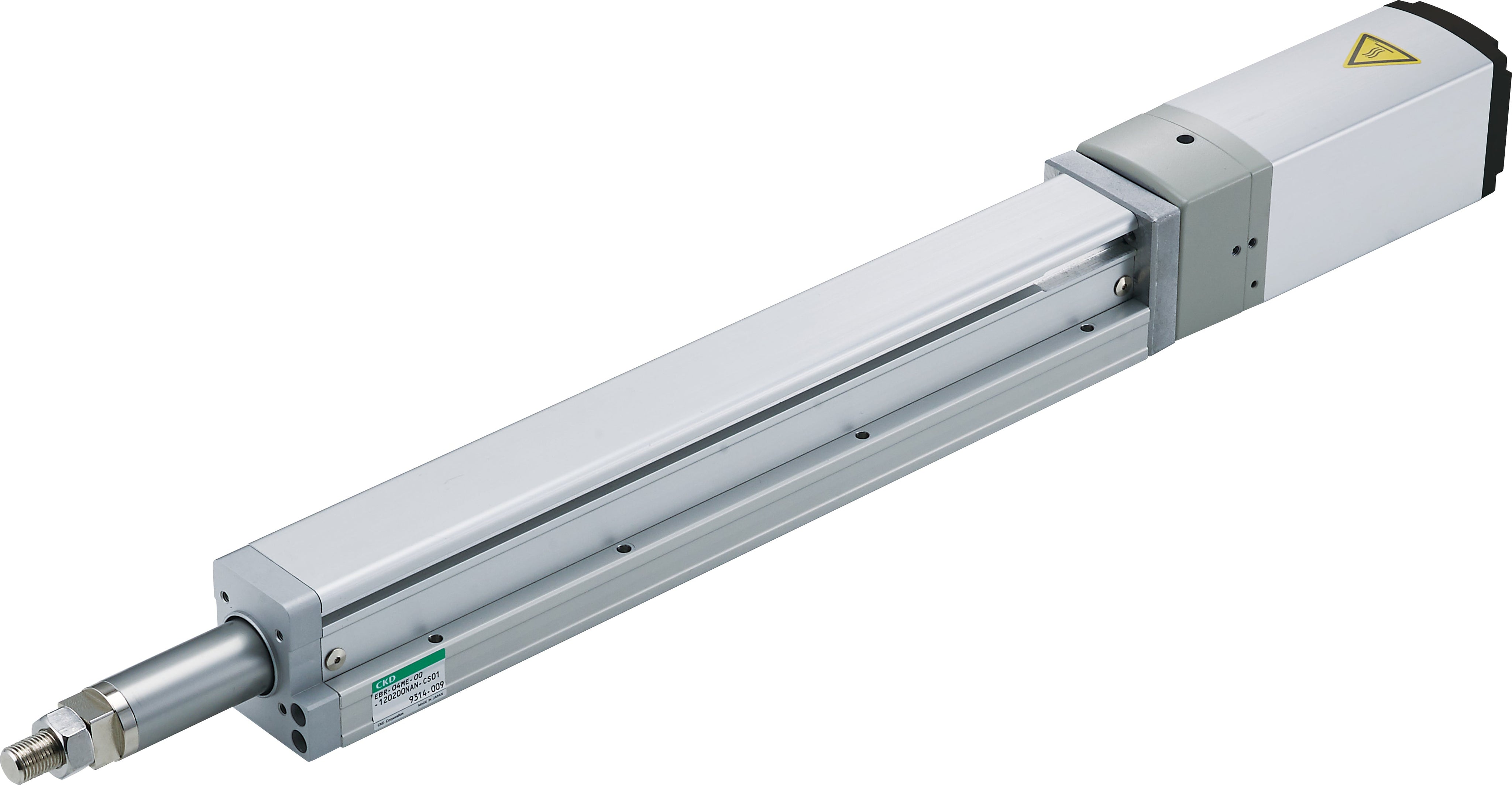

Stepper actuator with built-in guide, 54 mm, straight mount, basic finger, 5 mm lead, 350 mm stroke, no brake, movable 5m
| Model Number | EBR-05GE-00-050350NBN-CR05 |
| Series | EBR |
| Body Width | 54 |
| Motor Mounting | Straight Mount |
| Mounting | Basic Finger |
| Screw Lead | 5 |
| Stroke | 350 |
| Brake | No Brake |
| Relay Cable | Movable 5m |
| Encoder | Battery-less absolute encoder (for ECMG/ECG) |
| Compatible Controller | ECMG/ECG |
| Weight | 4.5 kg |
| Dimensions (V × W × H) | 59.3 × 54.0 × 722.0 mm |
