CB-018N2 Driver Card
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below
Couldn't load pickup availability
- Manufacturer Catalog Download

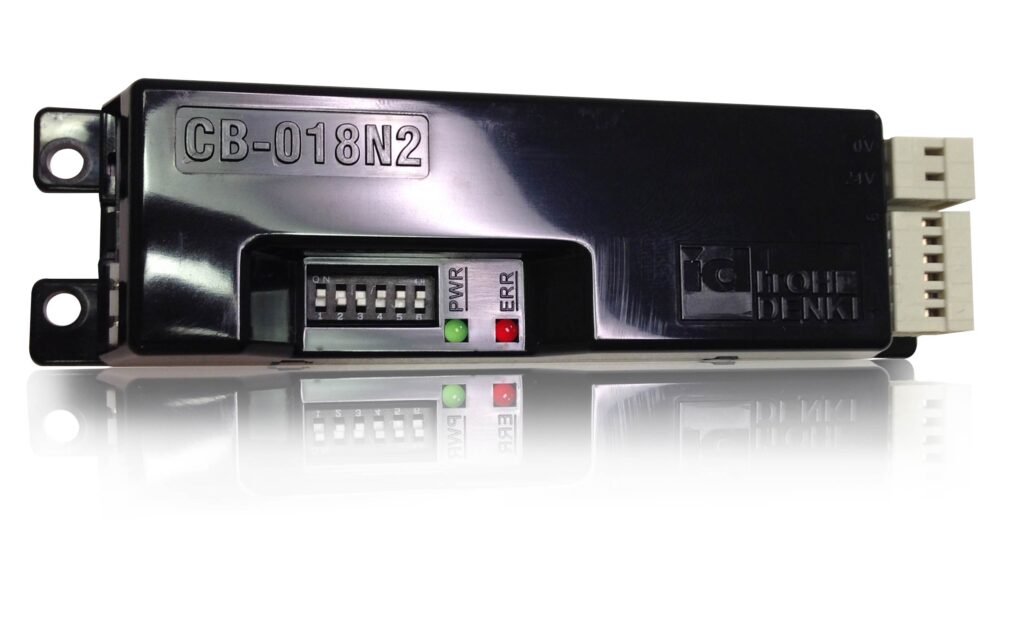

The Itoh Denki CB-018N2 is a dedicated driver card for the PM320HS compact 1.26" (32.0 mm) motorized roller. It provides 8 speed settings configured via three DIP switches, delivering reliable control for small belt and light-load conveyor applications. This card is paired exclusively with the PM320HS roller.
Key Features
- 8 speed settings via DIP switch
- Designed specifically for the PM320HS roller
- Compact form factor
- Consistent tangential force (18.5 lb) across all speed settings
Environment
- Ambient temperature 32~104°F (0~40°C)
- No corrosive gases
- Vibration < 0.5G
Specifications
| Speed Settings | 8 (via 3 DIP switches) |
| Tangential Force | 18.5 lb (all speed settings) |
| Starting Torque | 11.7 lb-in |
| Starting Current | 2.00A |
Performance Data (Speed Code 30)
| DIP Setting | No-Load Speed (FPM) | Tang. Force (lb) | Rated Current (A) |
|---|---|---|---|
| off / off / off | 19 | 18.5 | 0.60 |
| off / off / on | 33 | 18.5 | 0.64 |
| off / on / off | 43 | 18.5 | 0.66 |
| off / on / on | 52 | 18.5 | 0.69 |
| on / off / off | 62 | 18.5 | 0.72 |
| on / off / on | 72 | 18.5 | 0.75 |
| on / on / off | 81 | 18.5 | 0.77 |
| on / on / on | 95 | 18.5 | 0.80 |
Compatible Power Moller® Rollers
| PM320HS | 1.26" (32.0 mm) dia. — Compact stainless steel roller for small belt applications and washdown environments. Non-spring loaded shaft. |
Specifications are subject to change without prior notice. Please contact us for assistance with driver card selection and compatibility.
