AM-32HS-M5 — Opposite Cable Side Bracket

SKU: AM-32HS-M5
Please contact us for assistance with part number configuration and compatibility at 704-519-4661 or fill out a Request for Quote below

AM-32HS-M5 is the opposite cable side stainless steel bracket designed exclusively for the Itoh Denki PM320HS Power Moller® compact DC roller. This bracket is used in combination with a Z-071-D (hex flat up) or Z-081-D (hex point up) standard mounting bracket to complete the PM320HS mounting assembly.

The PM320HS requires one standard Z-bracket and one AM-32HS-M5 opposite cable side bracket per roller installation.

Key Details

  • Opposite cable side mounting bracket
  • Stainless steel construction
  • Used in combination with Z-071-D or Z-081-D
  • M5 mounting hardware

Installation

  • 1 required per PM320HS (opposite cable side)
  • Pair with 1 Z-071-D or Z-081-D bracket (cable side)

Compatible Rollers

  • PM320HS

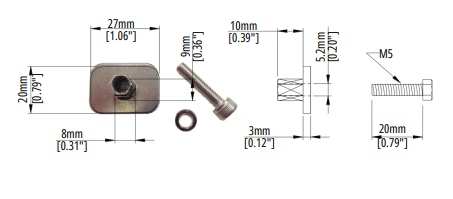

Dimensions

  • Width: 20 mm [0.79"]
  • Height: 27 mm [1.06"]
  • Depth: 9 mm [0.36"]
