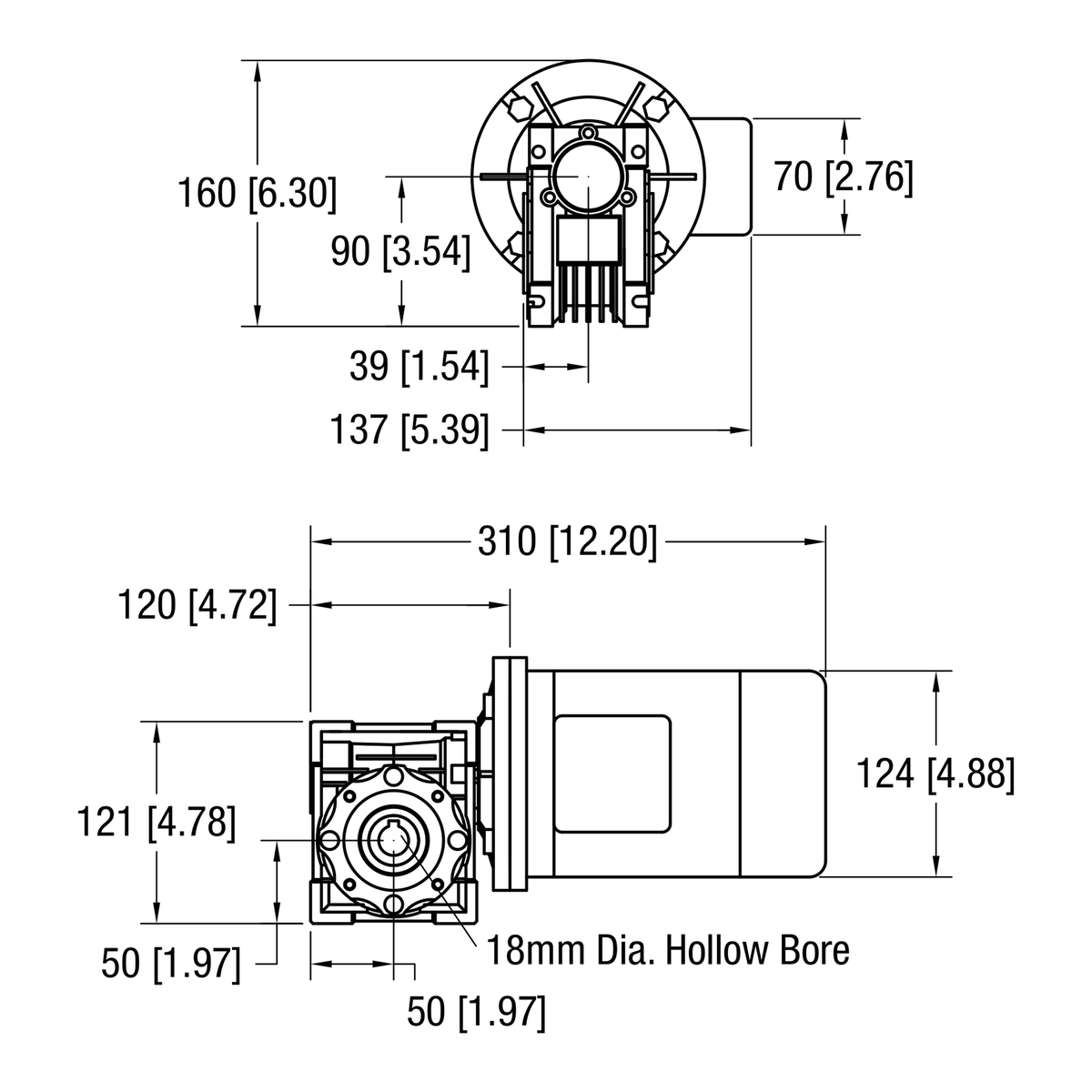

Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing

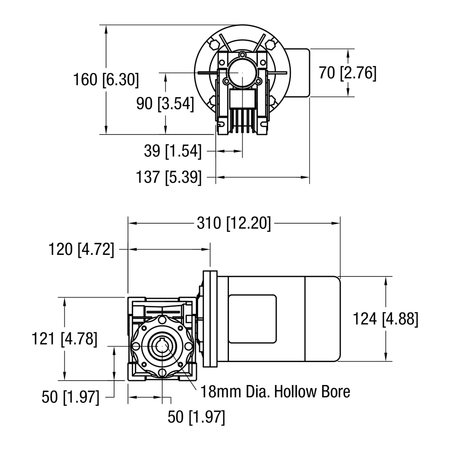

Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing
Dorner

Dorner 62Z040ES423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 0.24 kW, 35 RPM

SKU: 62Z040ES423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$720.00

Standard load IEC 90 Degree VFD Variable Speed gearmotor, .33 Hp (.24kw), 230/400 volt, 35 RPM. Order variable speed controller separately. Uncrated weight = 20lb (9kg).
  • Conveyor Series
    • 2200
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 35
  • Min. Speed (RPM) 18
  • Gear Ratio 40:1
  • Output Torque (Nm) 35.5
  • Motor Power (Hp) 0.33 Hp
  • Motor Power (kW) 0.24
  • Voltage 230/400V
  • Phase 3 phase
  • Frequency VFD 25-63 Hz
  • Full Load Amps 1.56 / 0.90 A
  • Motor Mount IEC 63 B5
  • Weight 20 lb
