Home » Dorner 62Z005ES443FN Gearmotor, Fixed Speed, 90° Right Angle, 0.24 kW, 280 RPM

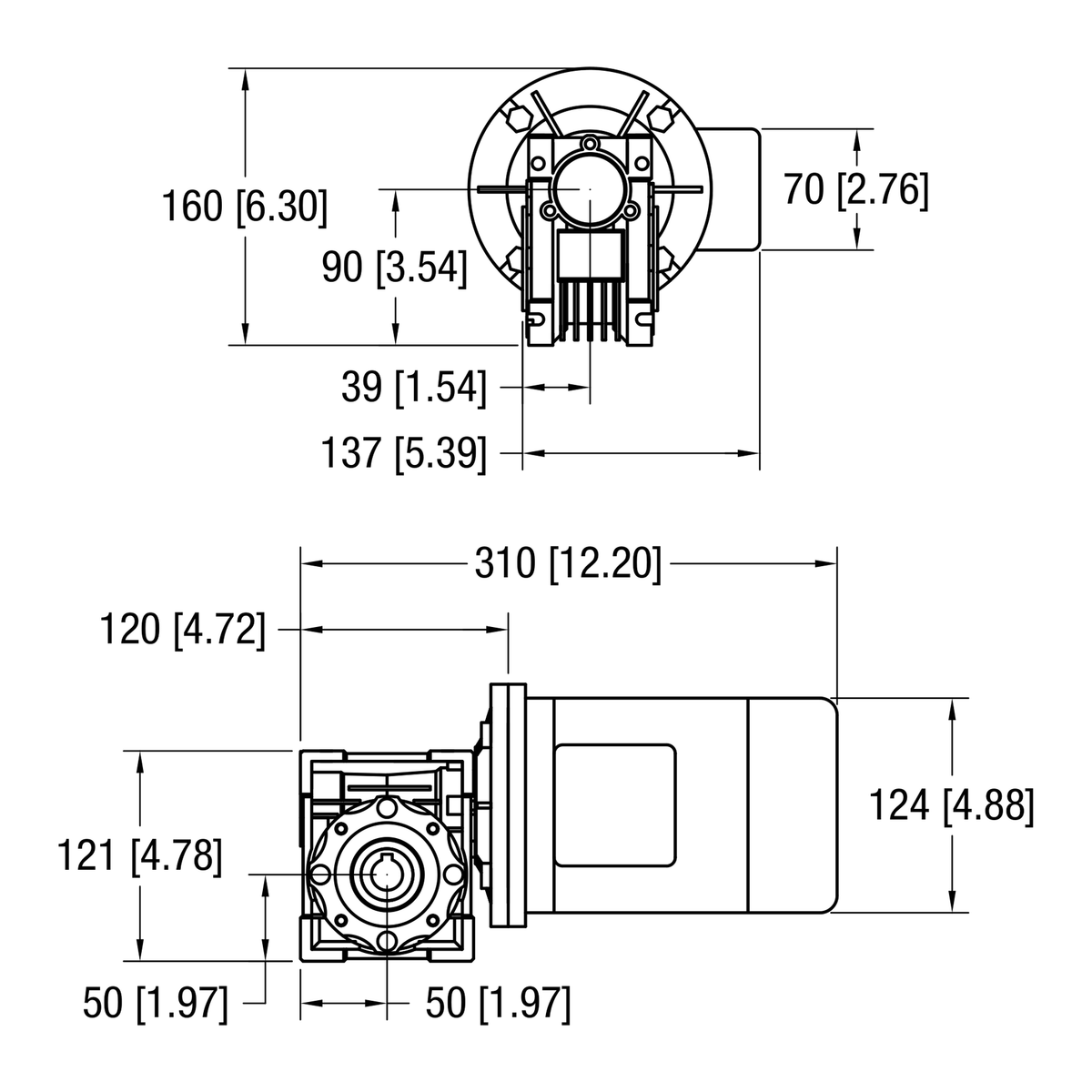

Dorner 90° gearmotor dimensional drawing
Dorner 90° gearmotor dimensional drawing
Dorner

Dorner 62Z005ES443FN Gearmotor, Fixed Speed, 90° Right Angle, 0.24 kW, 280 RPM

SKU: 62Z005ES443FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$720.00

Standard load IEC Fixed Speed gearmotor, .33 Hp (.24kw), 400 volt, 3 phase, 50 Hz, 280 RPM. Customer must supply on/off switch and motor overload to comply with CE safety directive. Uncrated weight = 20lb (9kg).
  • Conveyor Series
    • 2200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 280
  • Gear Ratio 5:1
  • Output Torque (Nm) 5.9
  • Motor Power (Hp) 0.33 Hp
  • Motor Power (kW) 0.24
  • Voltage 400V
  • Phase 3 phase
  • Frequency 50 Hz
  • Full Load Amps 1.56 / 0.9 A
  • Motor Mount IEC 63 B5
  • Weight 20 lb
