Home » Dorner 62M180PSD3DEN Gearmotor, DC Variable Speed, Parallel Shaft, 0.12 Hp, 14 RPM

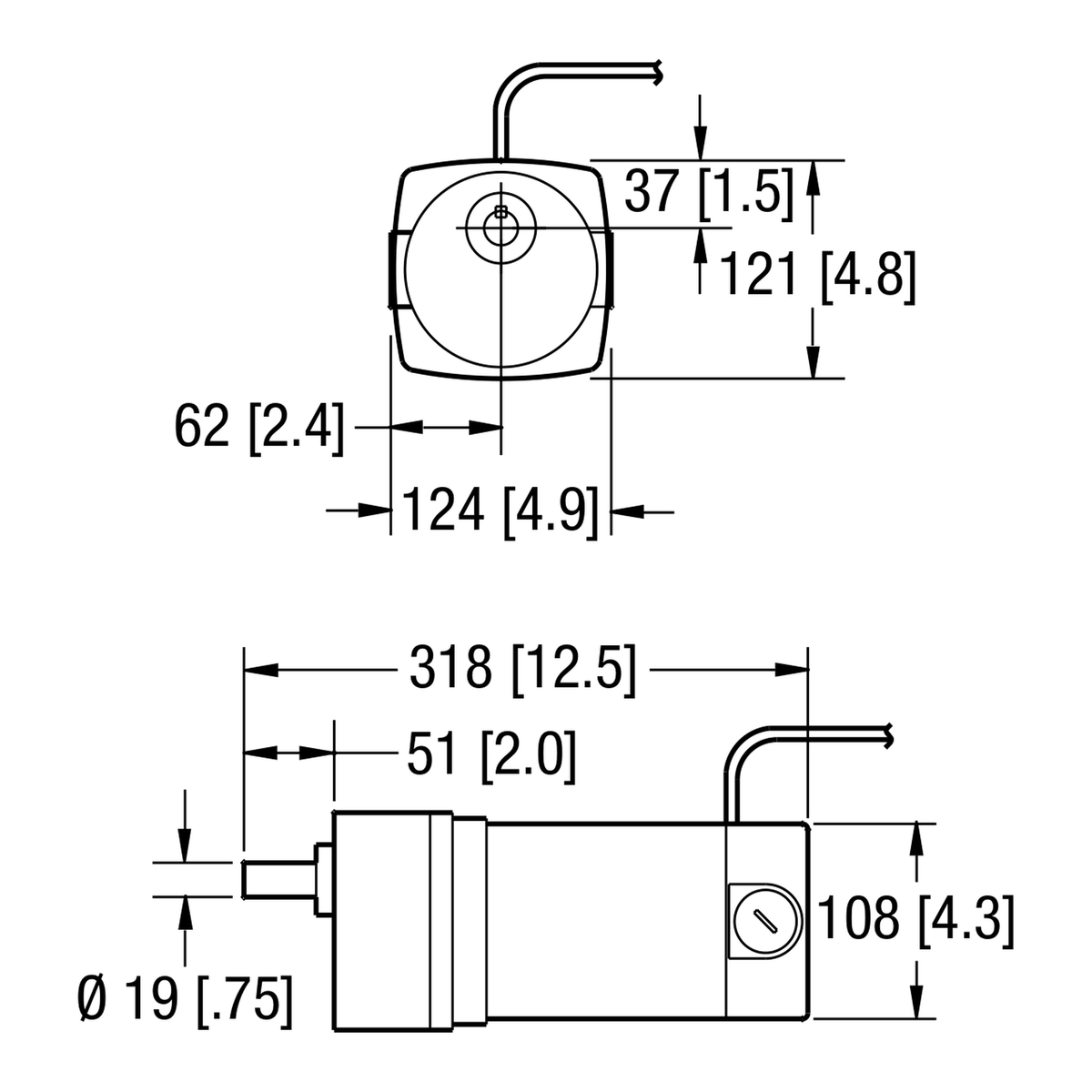

Dorner Parallel Shaft NEMA DC gearmotor dimensional drawing

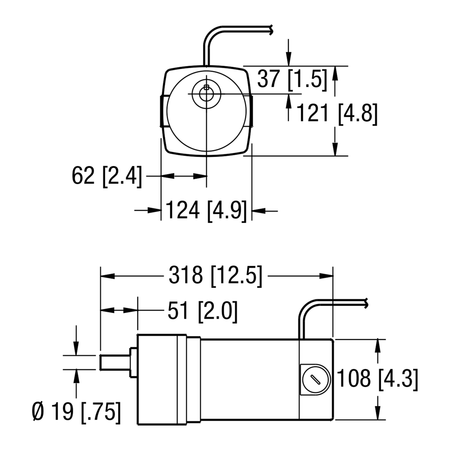

Dorner Parallel Shaft NEMA DC gearmotor dimensional drawing
Dorner

Dorner 62M180PSD3DEN Gearmotor, DC Variable Speed, Parallel Shaft, 0.12 Hp, 14 RPM

SKU: 62M180PSD3DEN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,007.00

Parallel shaft variable speed DC gearmotor, .12 Hp (.09kW), 130 volt DC, 14 RPM. Order variable speed controller separately. Uncrated weight = 13 lbs. (5.9 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type Parallel shaft
  • Motor Type Brushed DC
  • Output Speed (RPM) 14
  • Gear Ratio 180:1
  • Output Torque (in-lb) 341
  • Output Torque (Nm) 38.5
  • Motor Power (Hp) 0.12 Hp
  • Motor Power (kW) 0.09
  • Voltage 130V DC
  • Phase DC
  • Full Load Amps 1 A
  • Weight 13 lb
