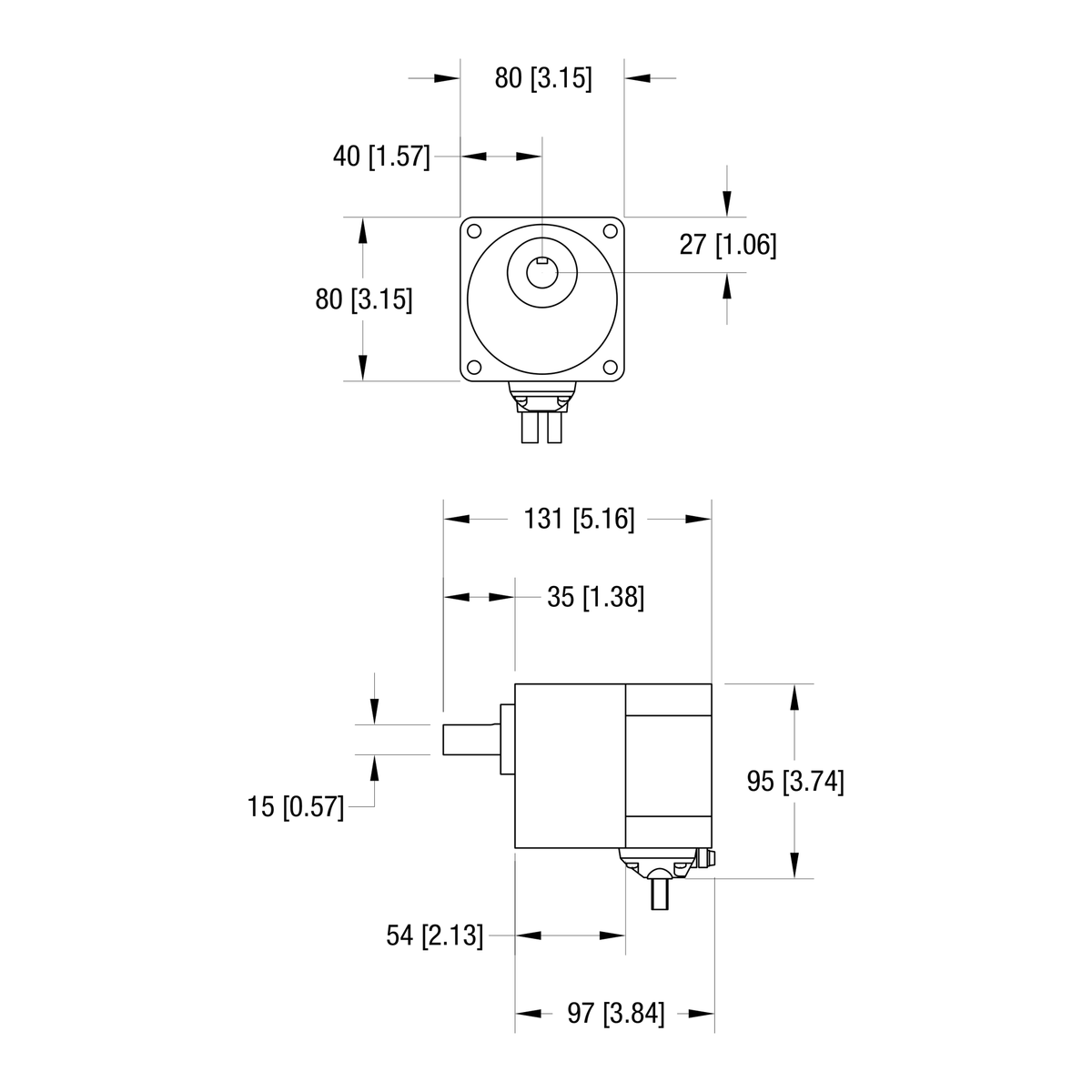

Dorner Parallel Shaft Brushless DC gearmotor dimensional drawing
Dorner Parallel Shaft Brushless DC gearmotor dimensional drawing
Dorner

Dorner 62M050PLBDDENB Gearmotor, Brushless DC Variable Speed & Indexing, Parallel Shaft, 0.08 Hp, 60 RPM

SKU: 62M050PLBDDENB
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$581.00

Light load parallel shaft gearmotor Brushless DC Variable Speed and Indexing gearmotor, .08 Hp (.06kw), 115/230 volt, 60 RPM. Uncrated weight = 4lb (2kg).
  • Conveyor Series
    • 2200
  • Gearbox Type Parallel shaft
  • Motor Type Brushless DC
  • Output Speed (RPM) 60
  • Min. Speed (RPM) 2
  • Gear Ratio 50:1
  • Output Torque (in-lb) 70
  • Output Torque (Nm) 7.7
  • Motor Power (Hp) 0.08 Hp
  • Motor Power (kW) 0.06
  • Voltage Brushless DC (via controller)
  • Phase DC
  • Full Load Amps See controller
  • Weight 4 lb
