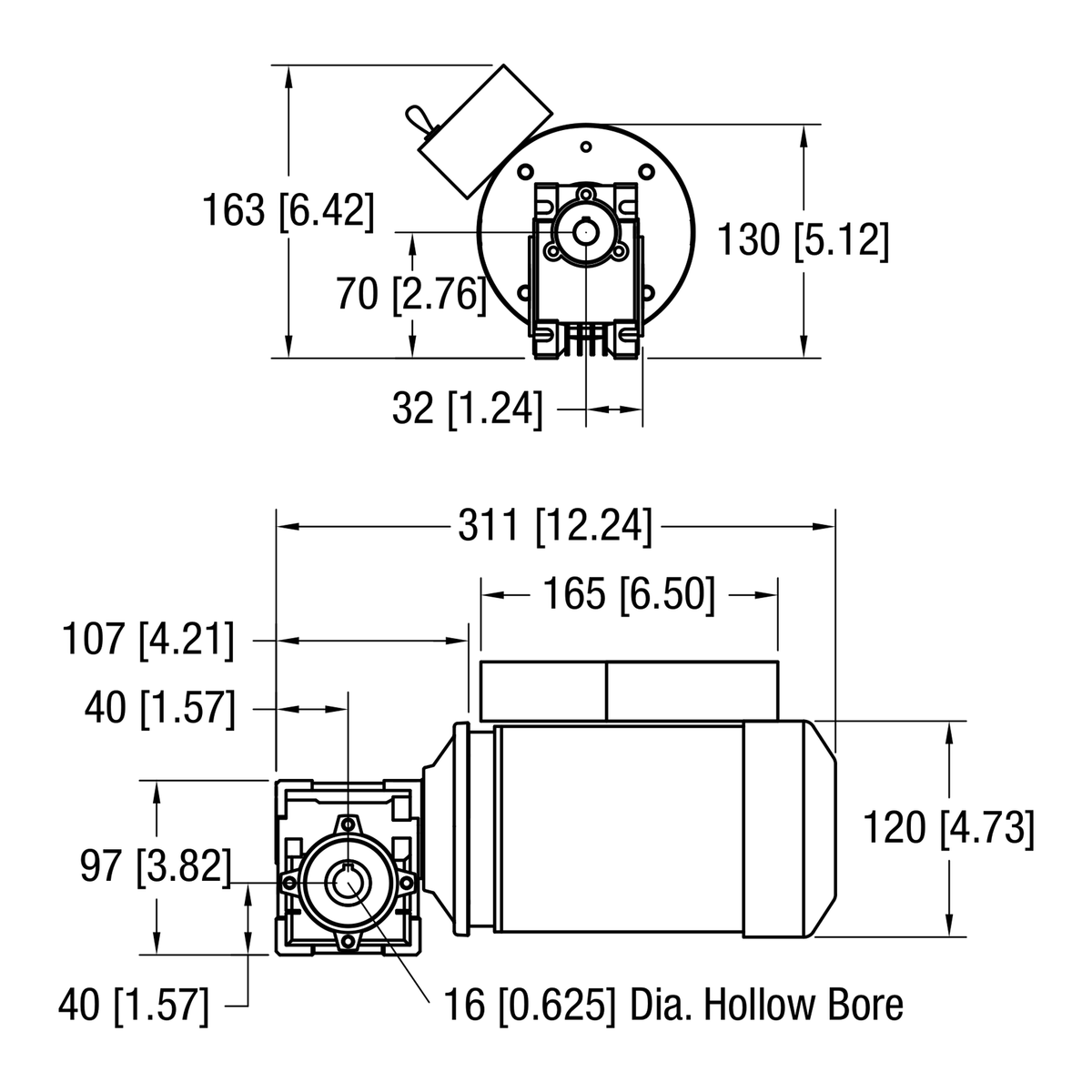

Dorner 90° eDrive NEMA C-Face gearmotor dimensional drawing
Dorner 90° eDrive NEMA C-Face gearmotor dimensional drawing
Dorner

Dorner 62M040ES423FN Gearmotor, Fixed Speed, 90° Right Angle, 0.38 Hp, 43 RPM

SKU: 62M040ES423FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$763.00

Standard load E-Drive 90 Degree Fixed Speed gearmotor, .38 Hp (.28kw), 208-230/460 volt, 3 phase, 60 Hz, 43 RPM. Order 3 phase starter separately. Uncrated weight = 15lb (7kg).
  • Conveyor Series
    • 2200
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 43
  • Gear Ratio 40:1
  • Output Torque (in-lb) 160
  • Output Torque (Nm) 18.1
  • Motor Power (Hp) 0.38 Hp
  • Motor Power (kW) 0.28
  • Voltage 208-230/460V
  • Phase 3 phase
  • Frequency 60 Hz
  • Full Load Amps 1.9 / 0.95 A
  • Motor Mount NEMA 42 CZ
  • Weight 15 lb
