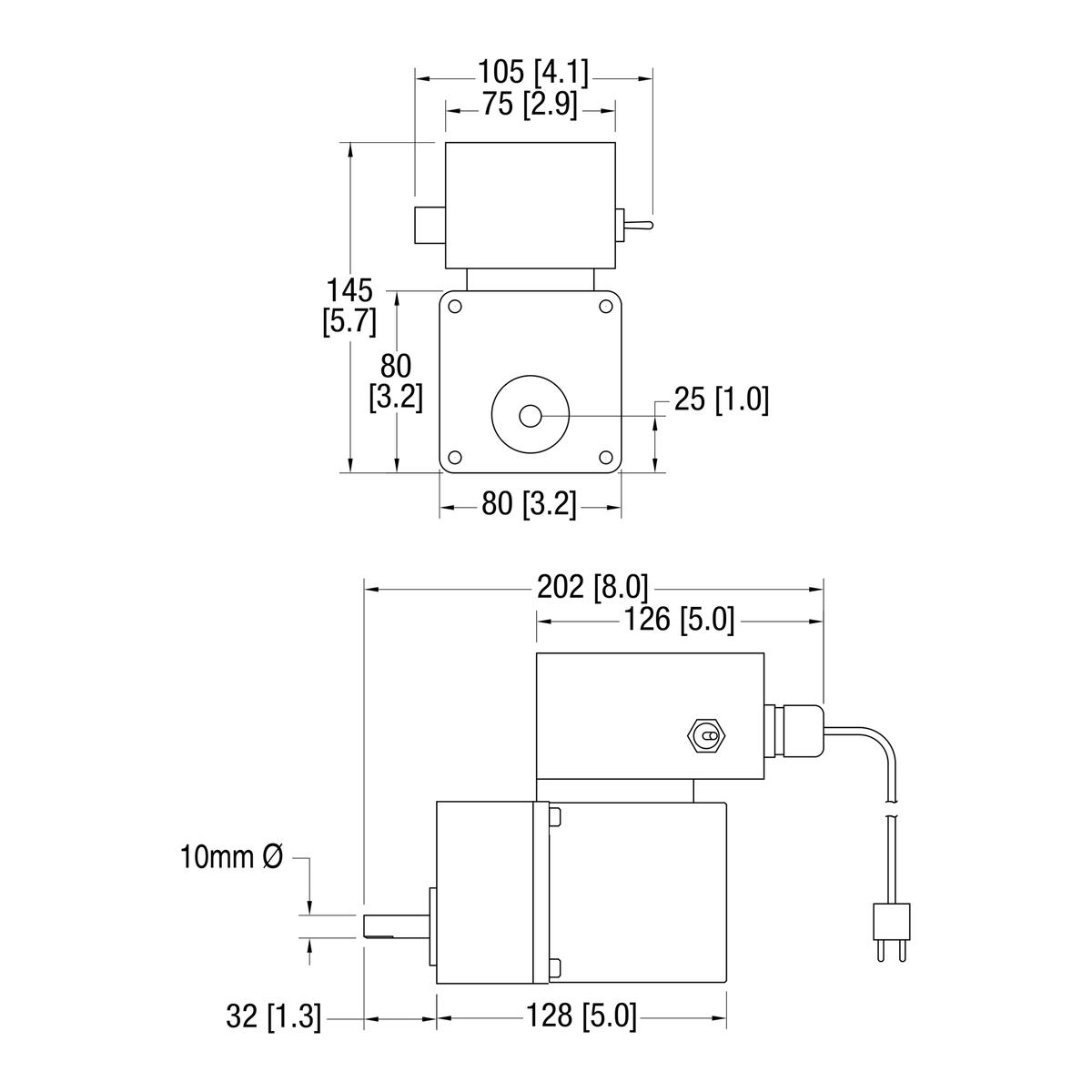

Dorner Parallel Shaft gearmotor dimensional drawing
Dorner Parallel Shaft gearmotor dimensional drawing
Dorner

Dorner 62M036PL423FN Gearmotor, Fixed Speed, Parallel Shaft, 0.03 Hp, 42 RPM

SKU: 62M036PL423FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$486.00

Light load parallel shaft gearmotor Fixed Speed gearmotor, .03 Hp (.02kw), 230 volt, 3 phase, 60 Hz, 42 RPM. Order 3 phase starter separately. Uncrated weight = 6lb (3kg).
  • Conveyor Series
    • 2200
  • Gearbox Type Parallel shaft
  • Motor Type AC fixed
  • Output Speed (RPM) 42
  • Gear Ratio 36:1
  • Output Torque (in-lb) 37
  • Output Torque (Nm) 4.2
  • Motor Power (Hp) 0.03 Hp
  • Motor Power (kW) 0.02
  • Voltage 230V
  • Phase 3 phase
  • Frequency 60 Hz
  • Full Load Amps 0.22 A
  • Weight 6 lb
