Home » Dorner 62M020PSBDDENB Gearmotor, Brushless DC Variable Speed & Indexing, Parallel Shaft, 0.25 Hp, 150 RPM

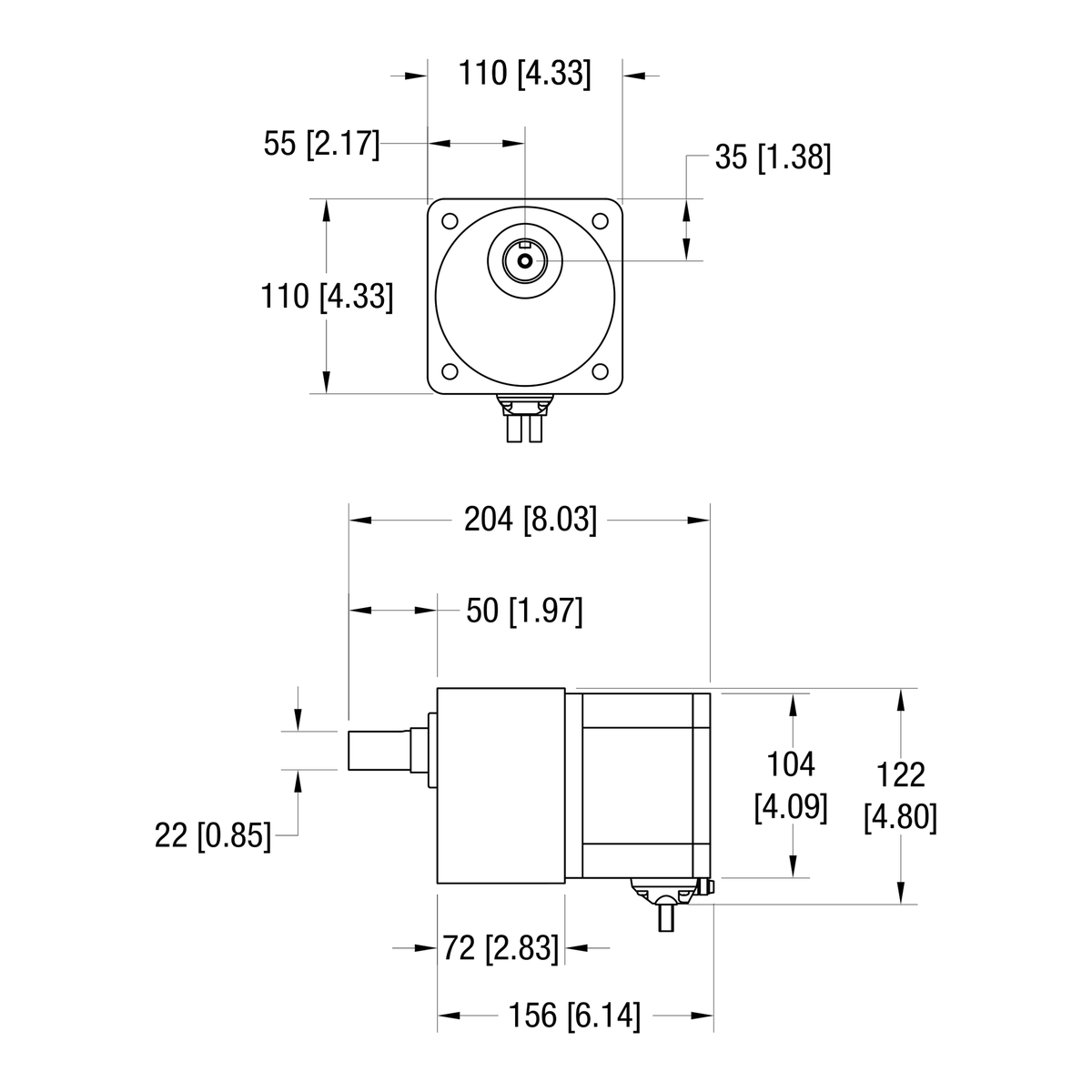

Dorner Parallel Shaft Brushless DC gearmotor dimensional drawing
Dorner Parallel Shaft Brushless DC gearmotor dimensional drawing
Dorner

Dorner 62M020PSBDDENB Gearmotor, Brushless DC Variable Speed & Indexing, Parallel Shaft, 0.25 Hp, 150 RPM

SKU: 62M020PSBDDENB
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$903.00

Standard load parallel shaft gearmotor Brushless DC Variable Speed and Indexing gearmotor, .25 Hp (.18kw), 115/230 volt, 150 RPM. Uncrated weight = 11lb (5kg).
  • Conveyor Series
    • 2200
    • 3200
  • Gearbox Type Parallel shaft
  • Motor Type Brushless DC
  • Output Speed (RPM) 150
  • Min. Speed (RPM) 5
  • Gear Ratio 20:1
  • Output Torque (in-lb) 101
  • Output Torque (Nm) 11.4
  • Motor Power (Hp) 0.25 Hp
  • Motor Power (kW) 0.18
  • Voltage Brushless DC (via controller)
  • Phase DC
  • Full Load Amps See controller
  • Weight 11 lb
