Home » Dorner 62M015PL411FN Gearmotor, Fixed Speed, Parallel Shaft, 0.03 Hp, 100 RPM

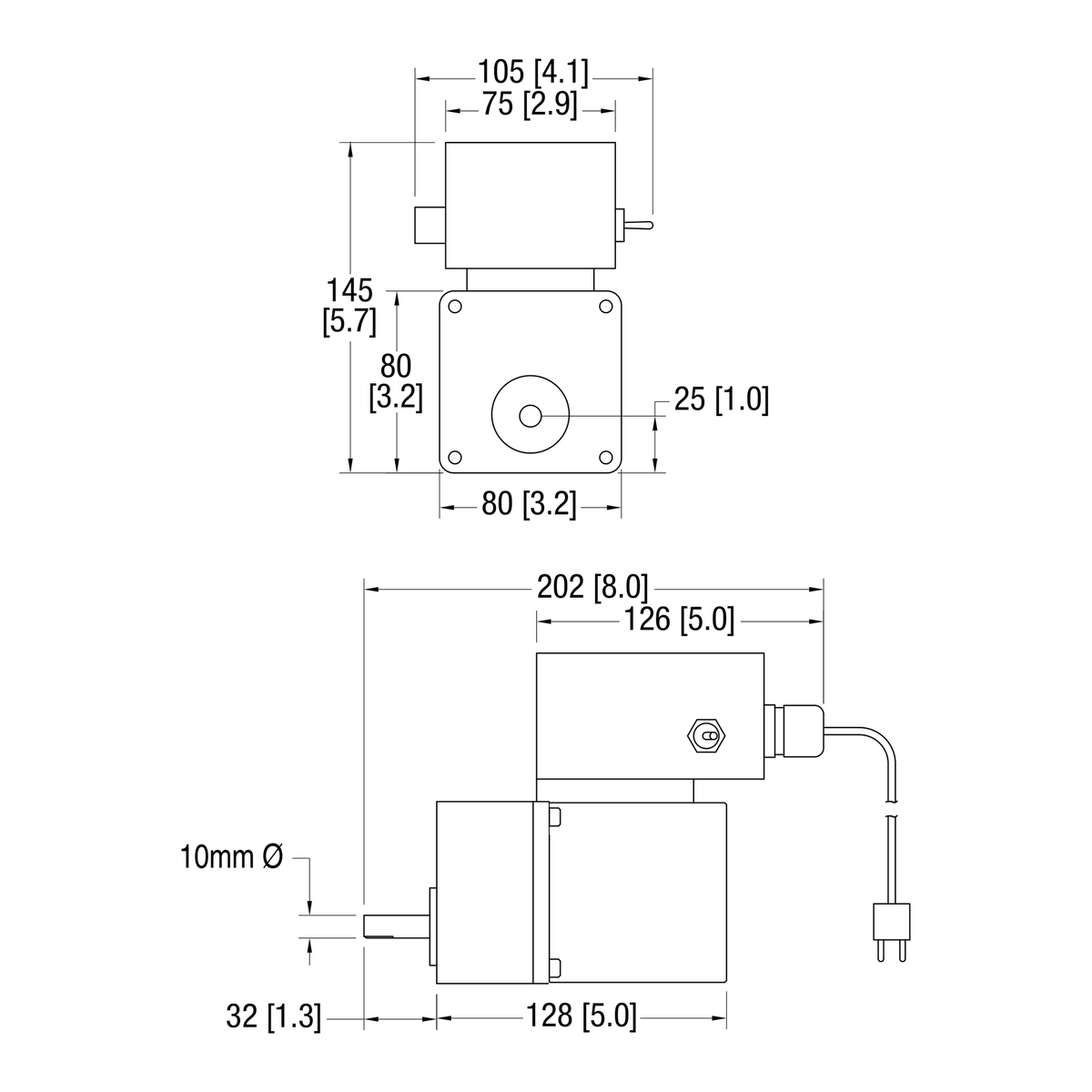

Dorner Parallel Shaft gearmotor dimensional drawing
Dorner Parallel Shaft gearmotor dimensional drawing
Dorner

Dorner 62M015PL411FN Gearmotor, Fixed Speed, Parallel Shaft, 0.03 Hp, 100 RPM

SKU: 62M015PL411FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$744.00

Light load parallel shaft gearmotor Fixed Speed gearmotor, .03 Hp (.02kw), 115 volt, 1 phase, 60 Hz, 100 RPM. Includes on/off switch, cord, and overload protection. Uncrated weight = 5lb (2kg).
  • Conveyor Series
    • 2200
  • Gearbox Type Parallel shaft
  • Motor Type AC fixed
  • Output Speed (RPM) 100
  • Gear Ratio 15:1
  • Output Torque (in-lb) 12
  • Output Torque (Nm) 1.4
  • Motor Power (Hp) 0.03 Hp
  • Motor Power (kW) 0.02
  • Voltage 115V
  • Phase 1 phase
  • Frequency 60 Hz
  • Full Load Amps 0.46 A
  • Weight 5 lb
