Home » Dorner 62M010PSD3DEN Gearmotor, DC Variable Speed, Parallel Shaft, 0.33 Hp, 250 RPM

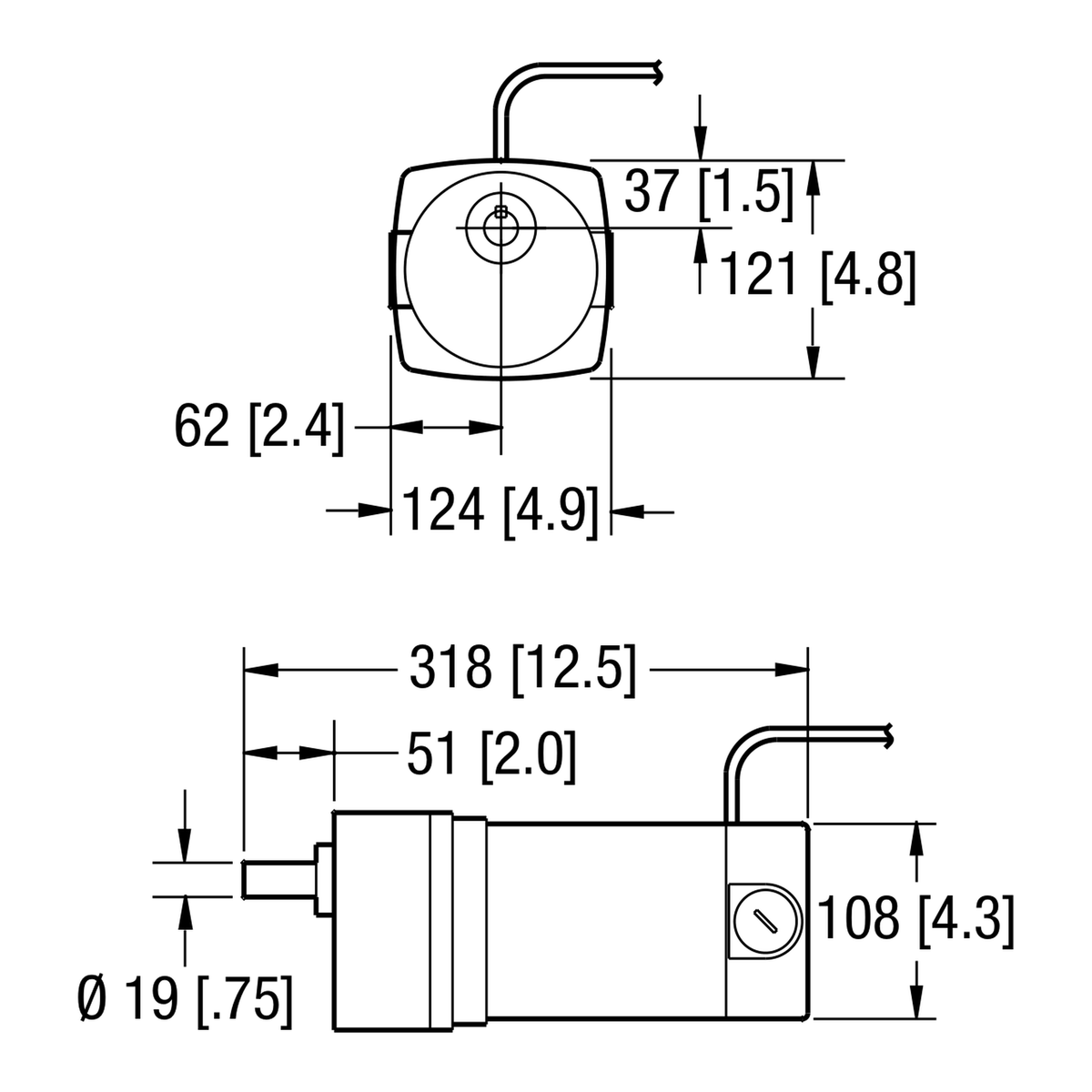

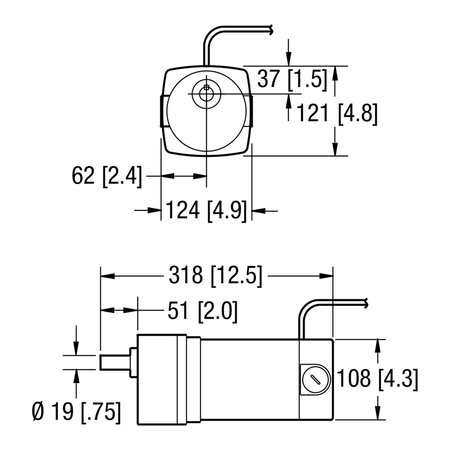

Dorner Parallel Shaft NEMA DC gearmotor dimensional drawing
Dorner Parallel Shaft NEMA DC gearmotor dimensional drawing
Dorner

Dorner 62M010PSD3DEN Gearmotor, DC Variable Speed, Parallel Shaft, 0.33 Hp, 250 RPM

SKU: 62M010PSD3DEN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,007.00

Parallel shaft variable speed DC gearmotor, .33 Hp (.25kW), 130 volt DC, 250 RPM. Order variable speed controller separately. Uncrated weight = 19 lbs. (8.6 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type Parallel shaft
  • Motor Type Brushed DC
  • Output Speed (RPM) 250
  • Gear Ratio 10:1
  • Output Torque (in-lb) 72
  • Output Torque (Nm) 8.1
  • Motor Power (Hp) 0.33 Hp
  • Motor Power (kW) 0.25
  • Voltage 130V DC
  • Phase DC
  • Full Load Amps 2.3 A
  • Weight 19 lb
