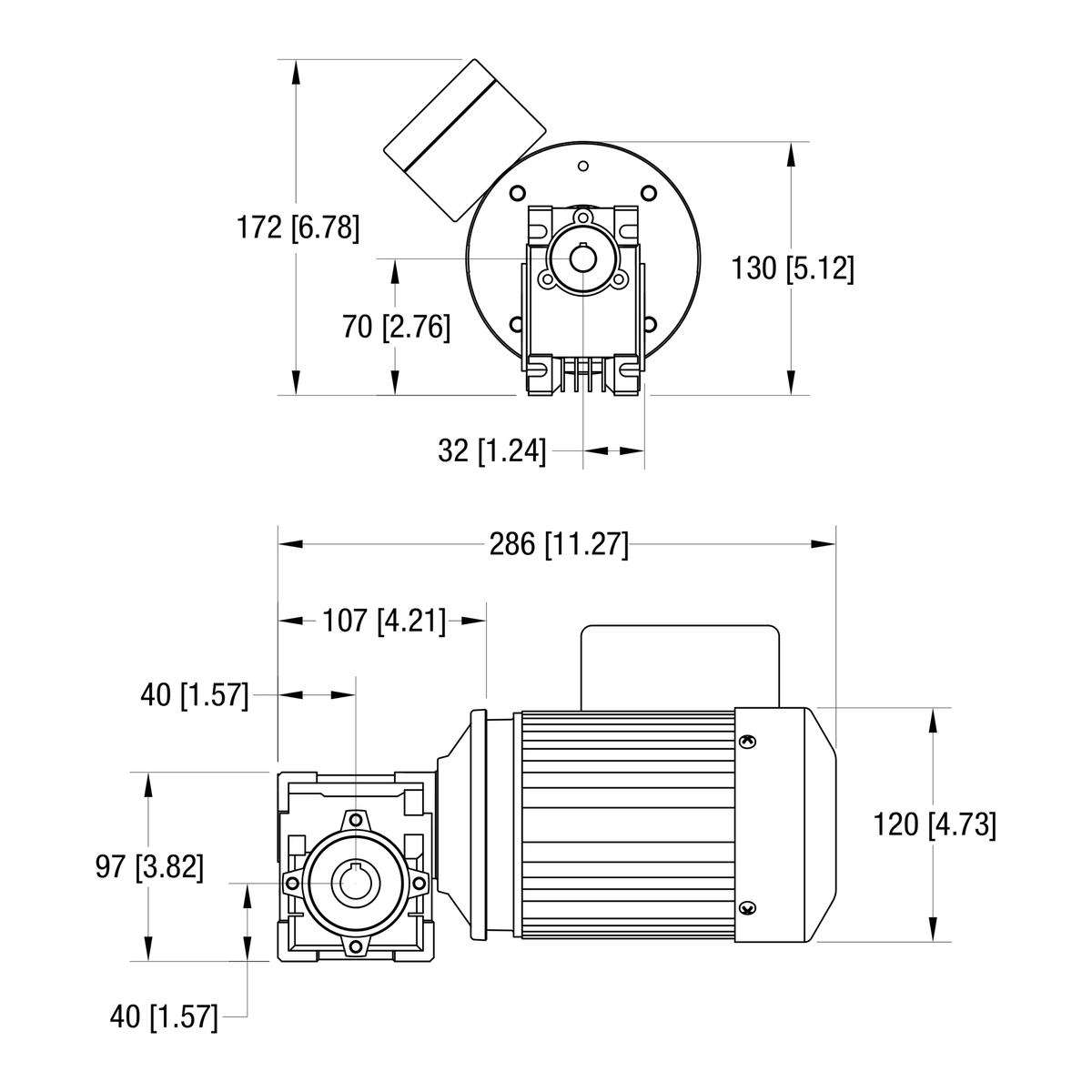

Dorner 90° VFD Rated gearmotor dimensional drawing
Dorner 90° VFD Rated gearmotor dimensional drawing
Dorner

Dorner 62M010ES423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 0.38 Hp, 173 RPM

SKU: 62M010ES423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$763.00

Standard load 90 Degree VFD Variable Speed gearmotor, .38 Hp (.28kw), 230/460 volt, 173 RPM. Order variable speed controller separately. Uncrated weight = 15lb (7kg).
  • Conveyor Series
    • 2200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 173
  • Min. Speed (RPM) 29
  • Gear Ratio 10:1
  • Output Torque (in-lb) 114
  • Output Torque (Nm) 12.9
  • Motor Power (Hp) 0.38 Hp
  • Motor Power (kW) 0.28
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency VFD 10-60 Hz
  • Full Load Amps 1.9 / 0.95 A
  • Motor Mount NEMA 42 CZ
  • Weight 15 lb
