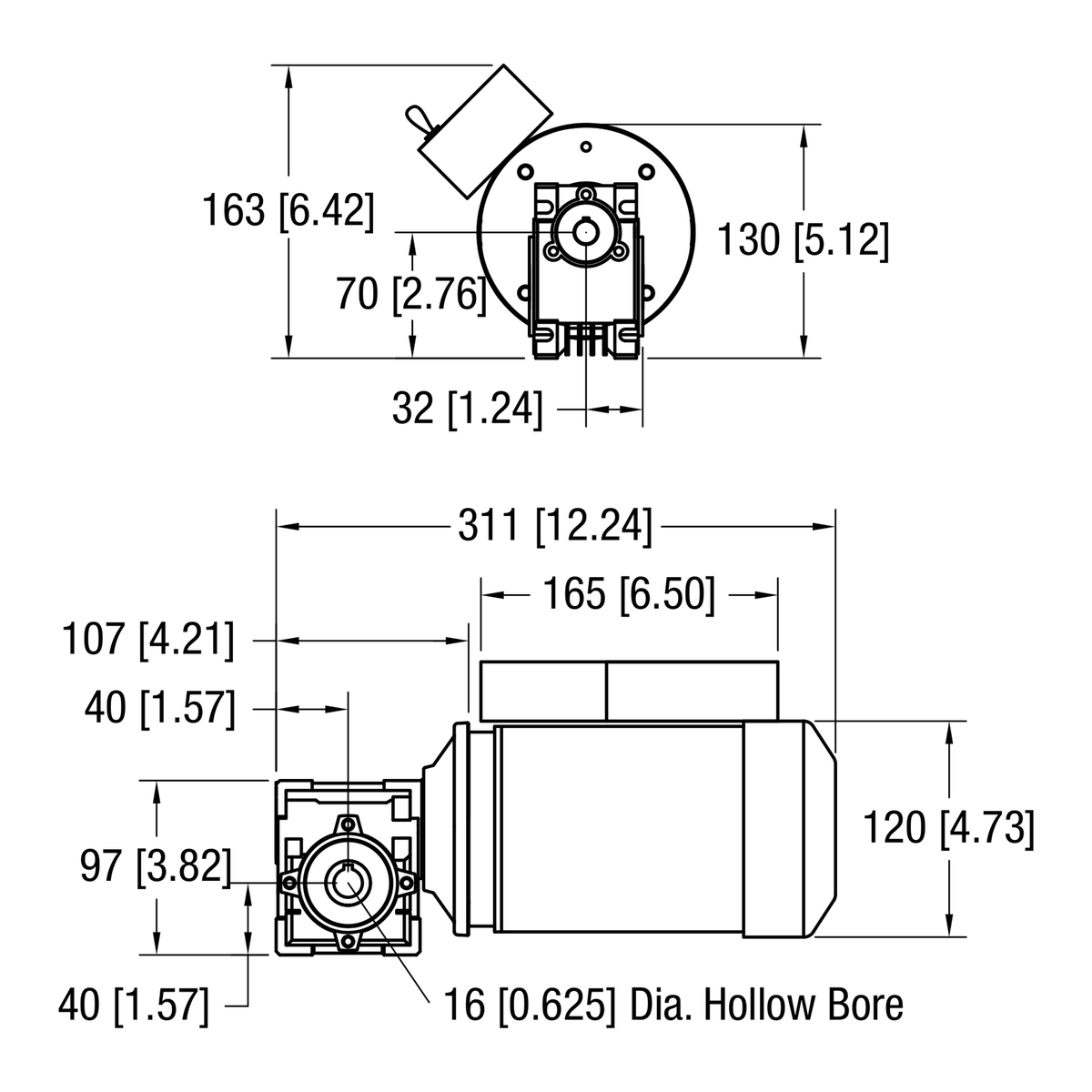

Dorner 90° eDrive NEMA C-Face gearmotor dimensional drawing
Dorner 90° eDrive NEMA C-Face gearmotor dimensional drawing
Dorner

Dorner 62M010ES411FN Gearmotor, Fixed Speed, 90° Right Angle, 0.25 Hp, 173 RPM

SKU: 62M010ES411FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$832.00

Standard load E-Drive 90 Degree Fixed Speed gearmotor, .25 Hp (.18kw), 115 volt, 1 phase, 60 Hz, 173 RPM. Includes on/off switch, cord, and overload protection. Uncrated weight = 18lb (8kg).
  • Conveyor Series
    • 2200
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 173
  • Gear Ratio 10:1
  • Output Torque (in-lb) 75
  • Output Torque (Nm) 8.5
  • Motor Power (Hp) 0.25 Hp
  • Motor Power (kW) 0.18
  • Voltage 115V
  • Phase 1 phase
  • Frequency 60 Hz
  • Full Load Amps 3.1 A
  • Motor Mount NEMA 42 CZ
  • Weight 18 lb
