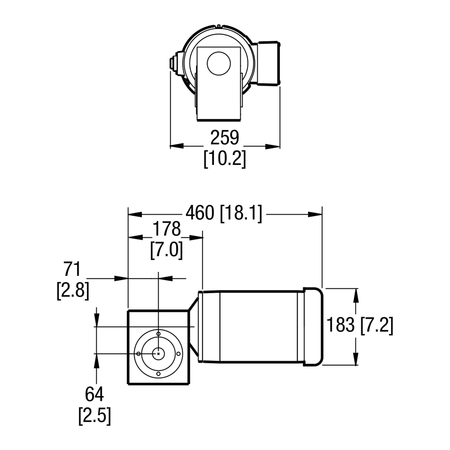

Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing

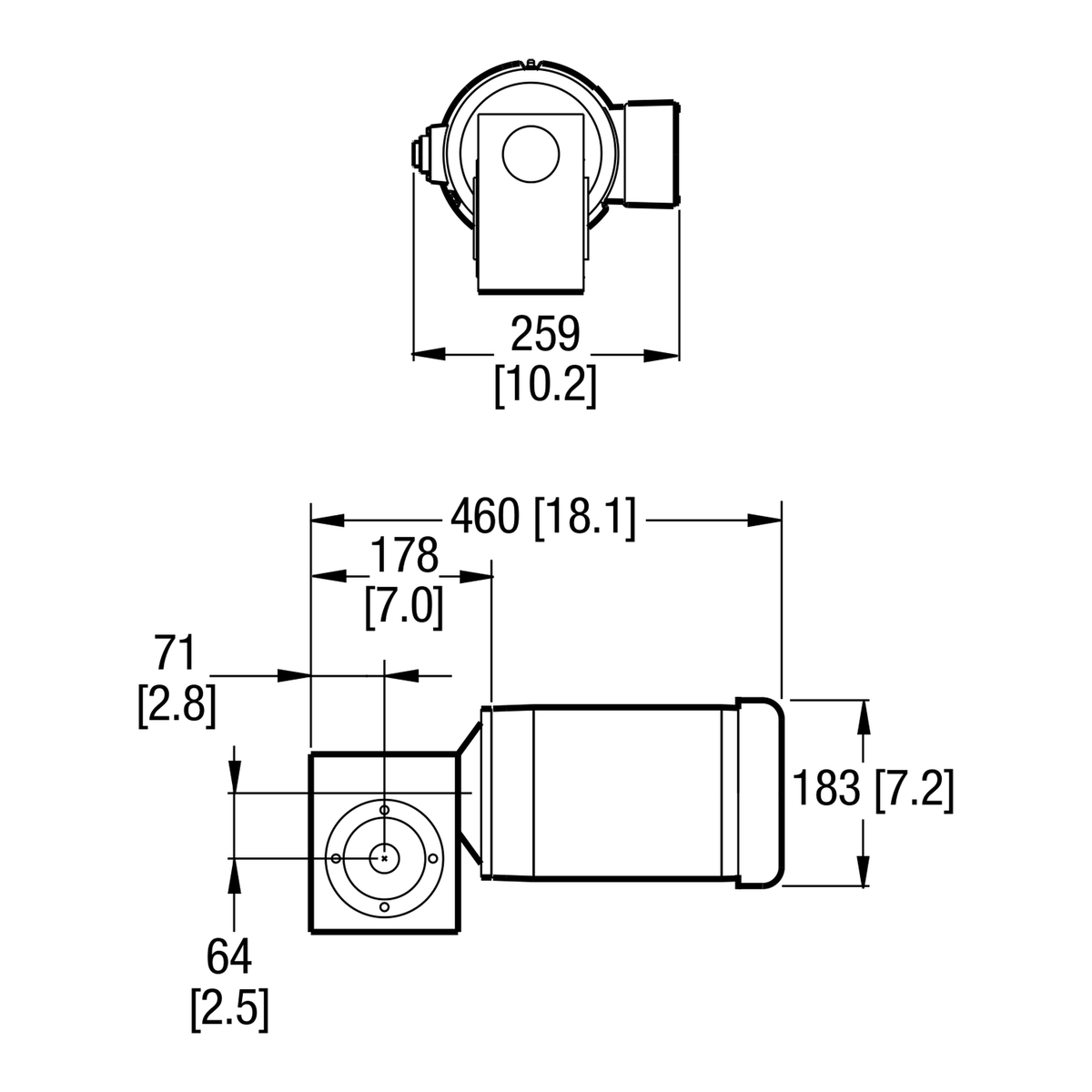

Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing
Dorner

Dorner 52Z080HH423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 0.37 kW, 22 RPM

SKU: 52Z080HH423EN
Estimated ship time:10 Business Days
Call Us for Volume Discount Availability 704.519.4661
$937.00

CE heavy load 90° shaft VFD gearmotor, .5 Hp (.37kW), 230/400 volt, 3 phase, 25-63 Hz, 22 RPM. Uncrated weight = 35 lbs. (15.9 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 22
  • Min. Speed (RPM) 9
  • Gear Ratio 80:1
  • Output Torque (in-lb) 1,018
  • Output Torque (Nm) 115
  • Motor Power (Hp) 0.5 Hp
  • Motor Power (kW) 0.37
  • Voltage 230V
  • Phase 3 phase
  • Frequency VFD 25-63 Hz (50 Hz nominal)
  • Full Load Amps 2.1 / 1.2 A
  • Motor Mount IEC 71 B5
  • Weight 35 lb
