Home » Dorner 52Z050EH423FN Gearmotor, Fixed Speed, 90° Right Angle, 0.55 kW, 28 RPM

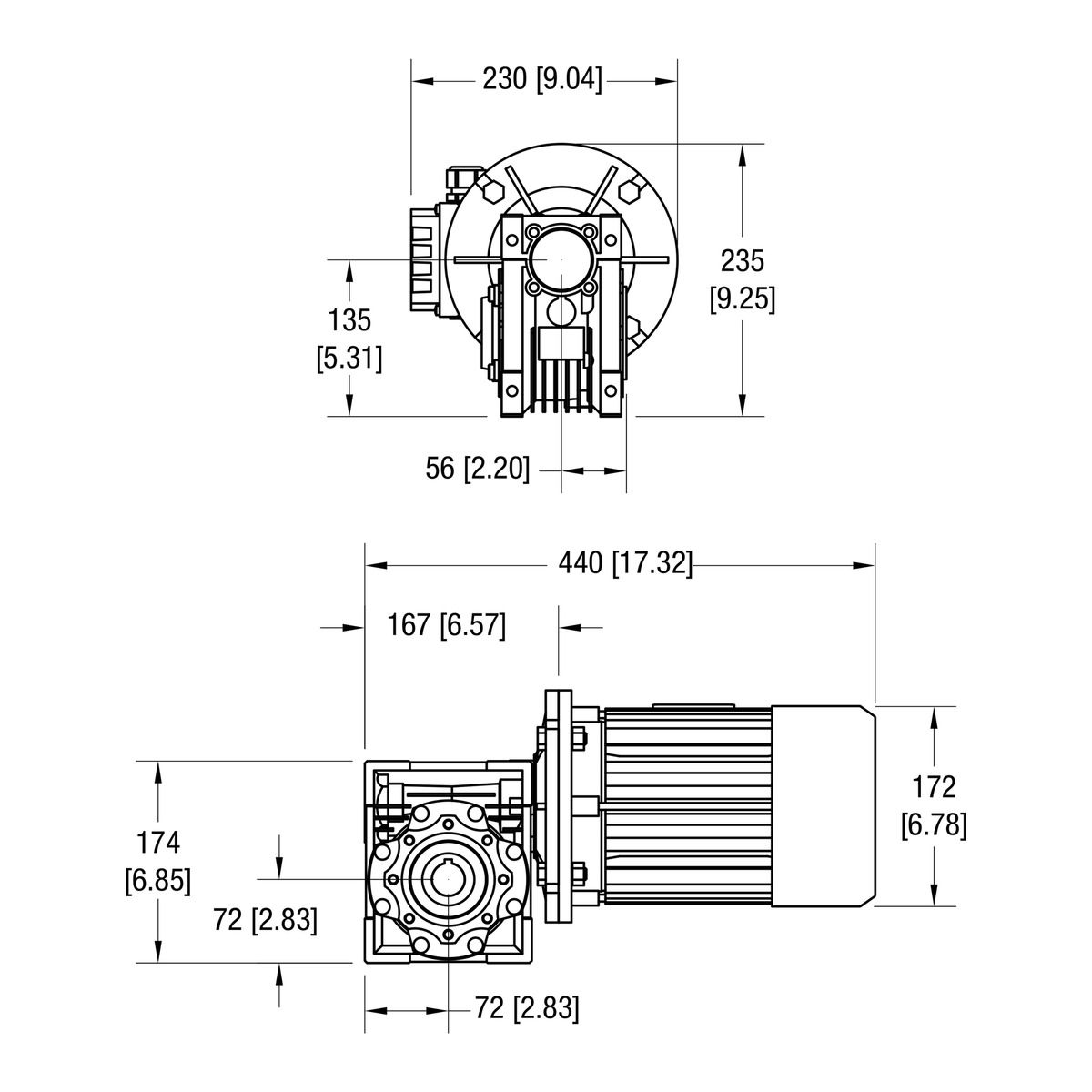

Dorner 90° eDrive IEC C-Face gearmotor dimensional drawing
Dorner 90° eDrive IEC C-Face gearmotor dimensional drawing
Dorner

Dorner 52Z050EH423FN Gearmotor, Fixed Speed, 90° Right Angle, 0.55 kW, 28 RPM

SKU: 52Z050EH423FN
Estimated ship time:10 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,114.00

CE heavy load 90° shaft gearmotor, .75 Hp (.55kW), 230/400 volt, 3 phase, 50 Hz, 28 RPM. Uncrated weight = 38 lbs. (17.2 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 28
  • Gear Ratio 50:1
  • Output Torque (in-lb) 1,097
  • Output Torque (Nm) 124
  • Motor Power (Hp) 0.75 Hp
  • Motor Power (kW) 0.55
  • Voltage 230V
  • Phase 3 phase
  • Frequency 50 Hz
  • Full Load Amps 2.6 / 1.5 A
  • Motor Mount IEC 80 B5
  • Weight 38 lb
