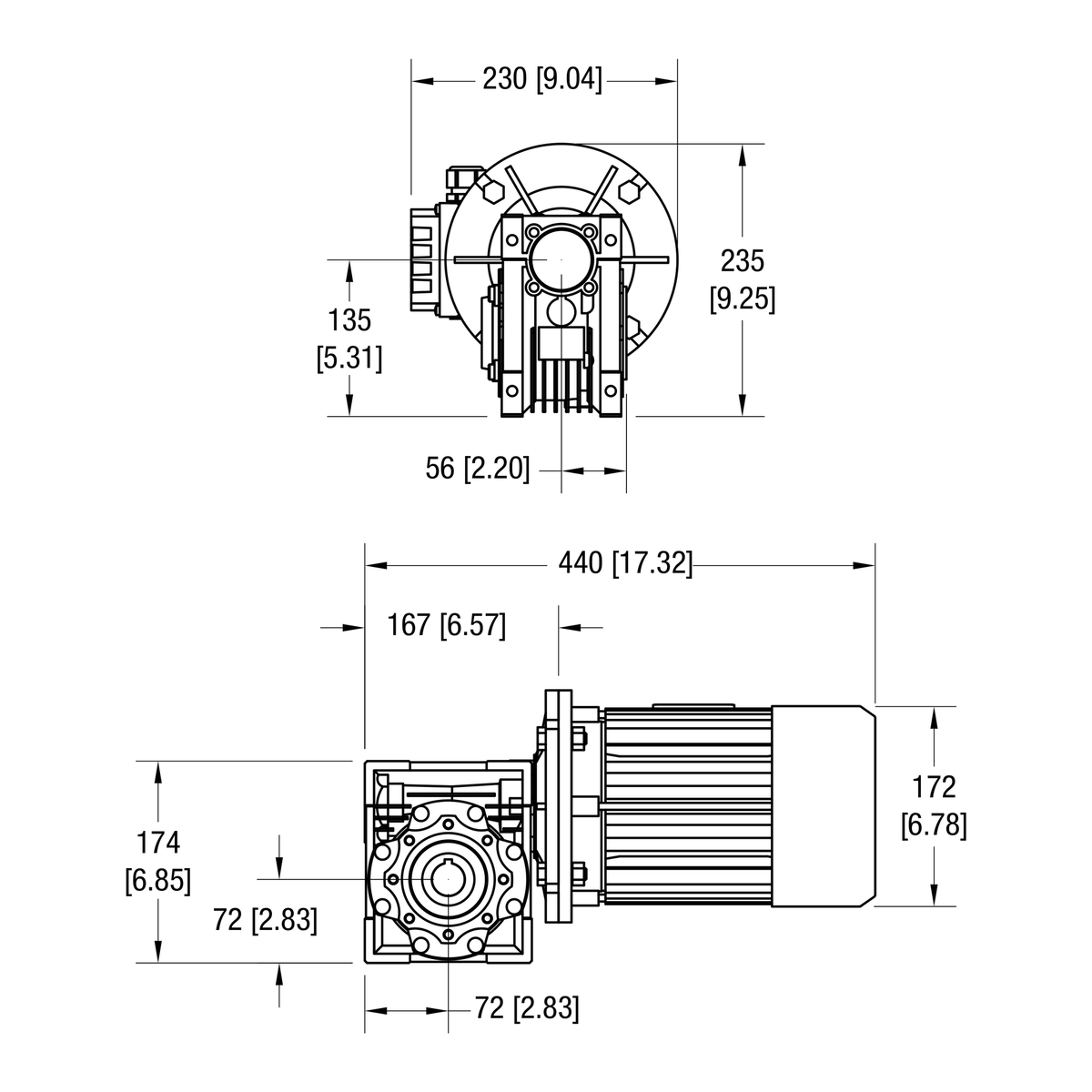

Dorner 90° eDrive IEC C-Face gearmotor dimensional drawing
Dorner 90° eDrive IEC C-Face gearmotor dimensional drawing
Dorner

Dorner 52Z040EH423FN Gearmotor, Fixed Speed, 90° Right Angle, 0.55 kW, 36 RPM

SKU: 52Z040EH423FN
Estimated ship time:10 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,114.00

CE heavy load 90° shaft gearmotor, .75 Hp (.55kW), 230/400 volt, 3 phase, 50 Hz, 36RPM. Uncrated weight = 43 lbs. (19.5 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 36
  • Gear Ratio 40:1
  • Output Torque (in-lb) 929
  • Output Torque (Nm) 105
  • Motor Power (Hp) 0.75 Hp
  • Motor Power (kW) 0.55
  • Voltage 230V
  • Phase 3 phase
  • Frequency 50 Hz
  • Full Load Amps 2.6 / 1.5 A
  • Motor Mount IEC 80 B5
  • Weight 43 lb
