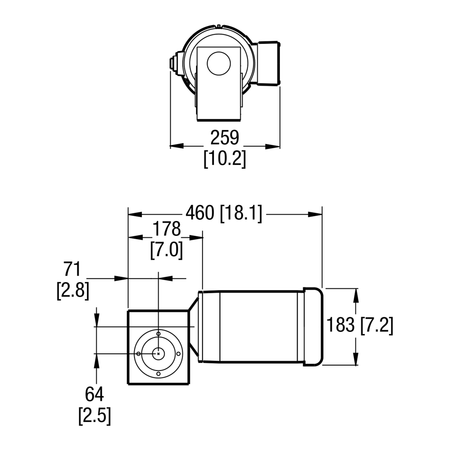

Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing

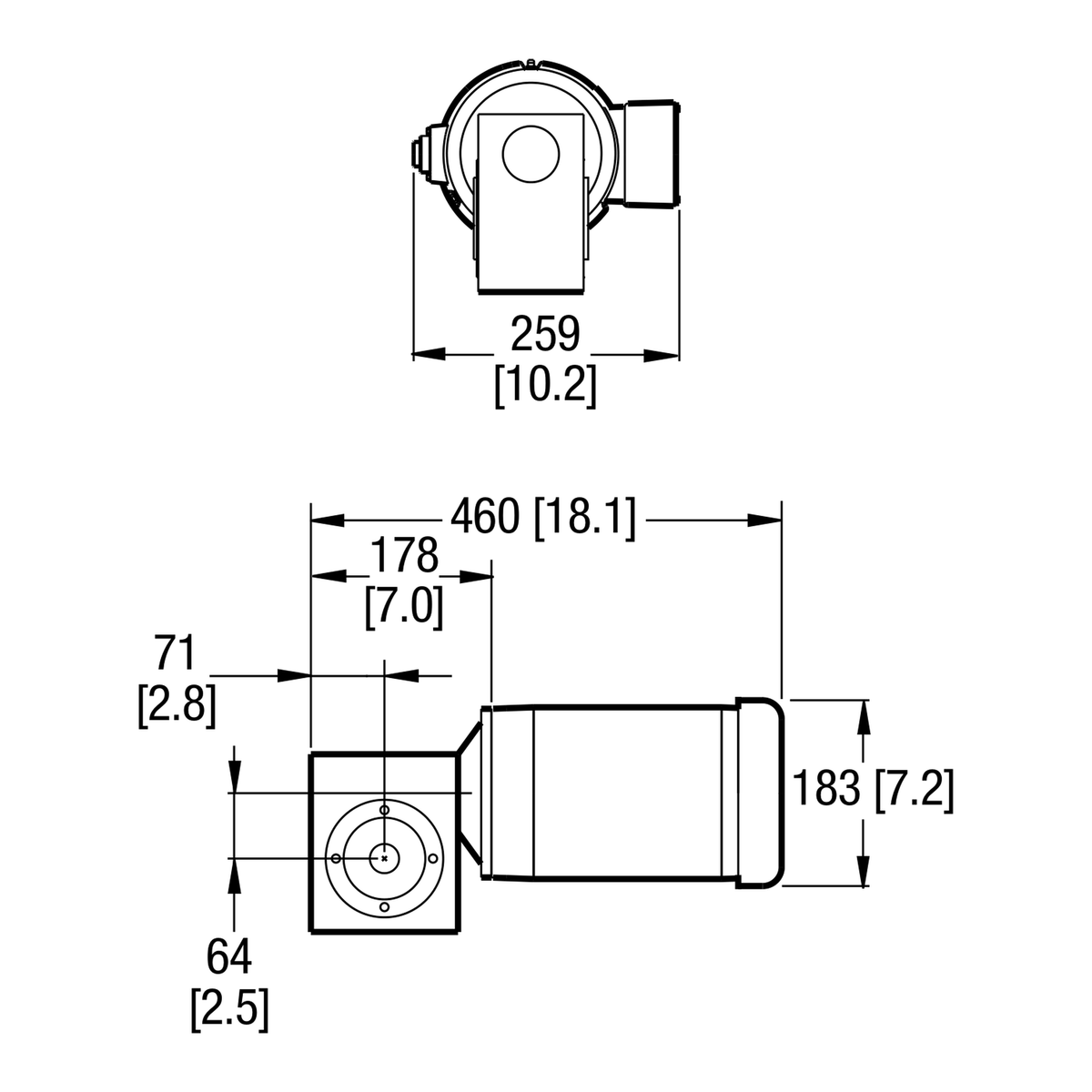

Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing
Dorner

Dorner 52Z030HH423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 1.1 kW, 59 RPM

SKU: 52Z030HH423EN
Estimated ship time:10 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,134.00

CE heavy load 90° shaft VFD gearmotor, 1.5 Hp (1.1kW), 230/400 volt, 3 phase, 25-63 Hz, 59 RPM. Uncrated weight = 50 lbs. (22.7 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 59
  • Min. Speed (RPM) 23
  • Gear Ratio 30:1
  • Output Torque (in-lb) 1,478
  • Output Torque (Nm) 167
  • Motor Power (Hp) 1.5 Hp
  • Motor Power (kW) 1.1
  • Voltage 230V
  • Phase 3 phase
  • Frequency VFD 25-63 Hz (50 Hz nominal)
  • Full Load Amps 4.7 / 2.7 A
  • Motor Mount IEC 90 B5
  • Weight 50 lb
