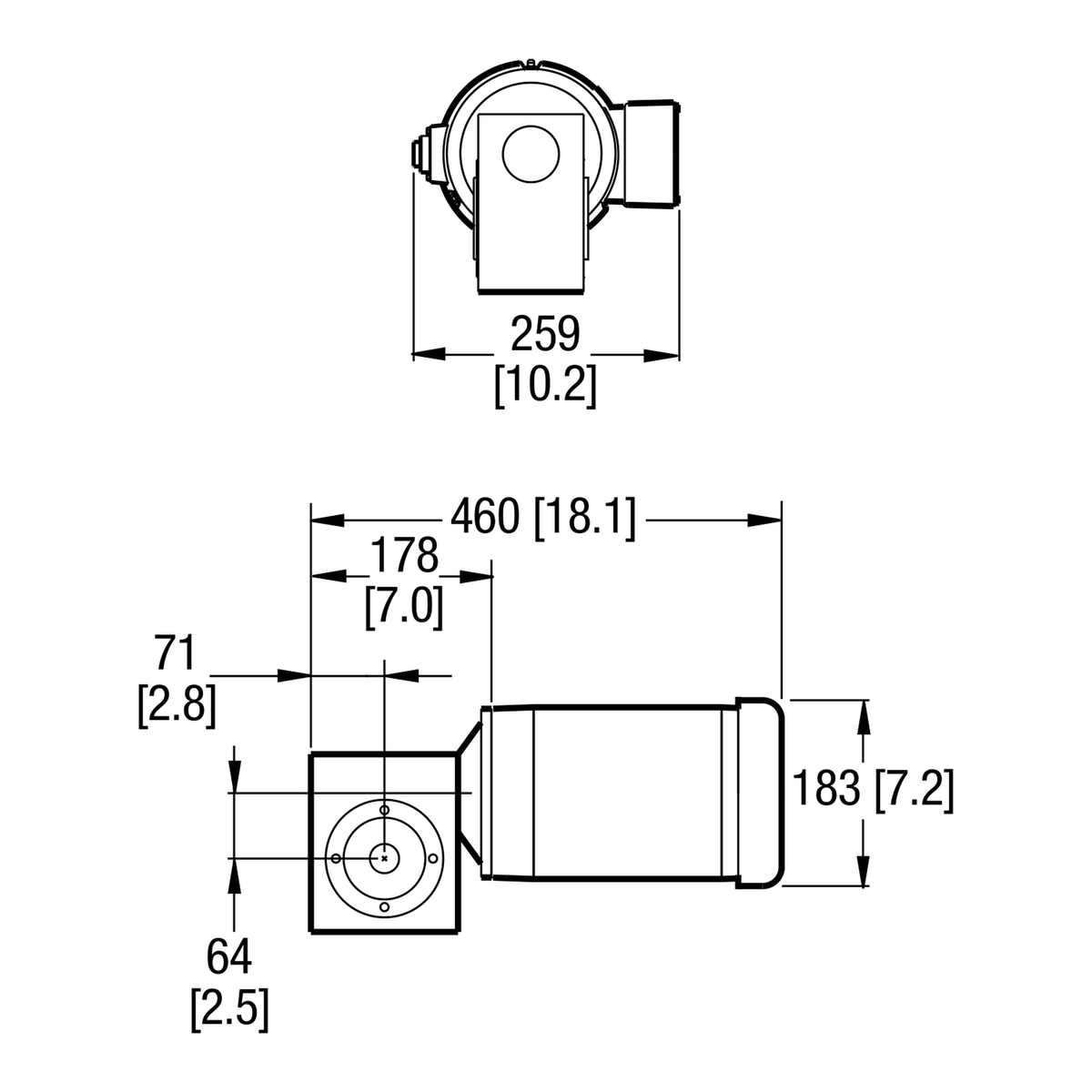

Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing

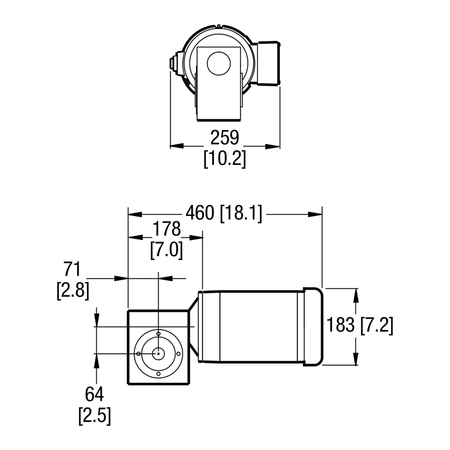

Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing
Dorner

Dorner 52Z008HH423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 1.5 kW, 235 RPM

SKU: 52Z008HH423EN
Estimated ship time:10 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,148.00

CE heavy load 90° shaft VFD gearmotor, 2 Hp (1.5kW), 230/400 volt, 3 phase, 25-63 Hz, 235 RPM. Uncrated weight = 64 lbs. (29 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 235
  • Min. Speed (RPM) 93
  • Gear Ratio 8:1
  • Output Torque (in-lb) 602
  • Output Torque (Nm) 68
  • Motor Power (Hp) 2 Hp
  • Motor Power (kW) 1.5
  • Voltage 230V
  • Phase 3 phase
  • Frequency VFD 25-63 Hz (50 Hz nominal)
  • Full Load Amps 6.1 / 3.5 A
  • Motor Mount IEC 90 B5
  • Weight 64 lb
