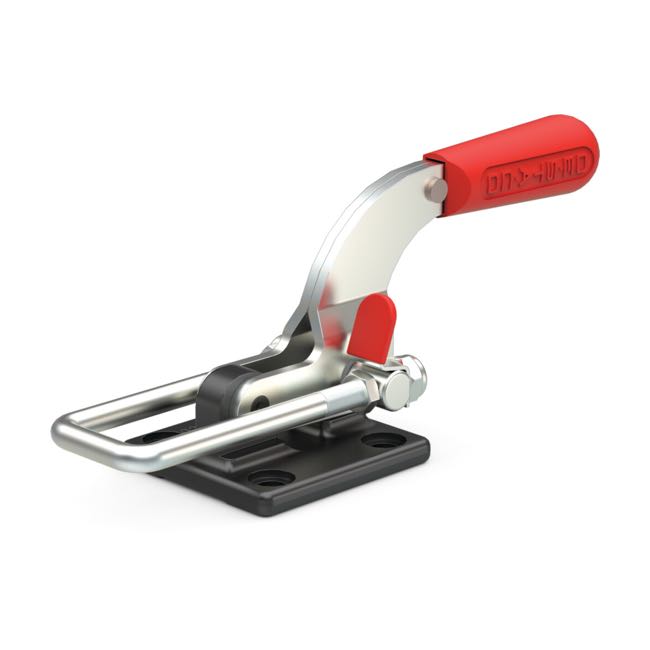

375-M-100 375 Pull Action Latch Clamp With 100mm Longer Hook
Call Us for Volume Discount Availability 704.519.4661
Regular price
$119.47
Couldn't load pickup availability
375 Series — Technical Information | Holding Capacities
| Model | Max. Holding Capacity |
Weight | EF:AF | Drawing Movement |
Latch Plate |
Replacement Hook Assembly |
Hook Adj. Range |
|---|---|---|---|---|---|---|---|
| 375 | 4000 lbf [17 800 N] | 2.94 lb [1.33 kg] | 44:1 | 3.50 in [88.9 mm] | 385102 (Optional) | 375204 | 0.81 in [20.5 mm] |
| 375-R | 4000 lbf [17 800 N] | 3.00 lb [1.36 kg] | 44:1 | 3.50 in [88.9 mm] | 385102 (Optional) | 375204 | 0.81 in [20.5 mm] |
| 375-B | 4000 lbf [17 800 N] | 2.56 lb [1.16 kg] | 44:1 | 3.50 in [88.9 mm] | 375509 (Supplied) | 375204 | 0.81 in [20.5 mm] |
| 375-BR | 4000 lbf [17 800 N] | 2.62 lb [1.19 kg] | 44:1 | 3.50 in [88.9 mm] | — | 375204 | 0.81 in [20.5 mm] |
| EF = Exerting Force, AF = Applied Force. 375-BR available upon request. | |||||||
