Home » Dorner 32Z010ES423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 0.37 kW, 140 RPM

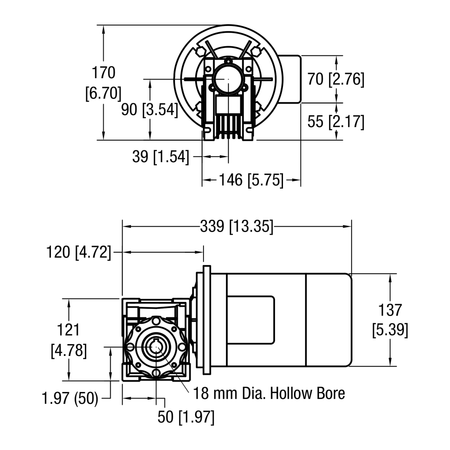

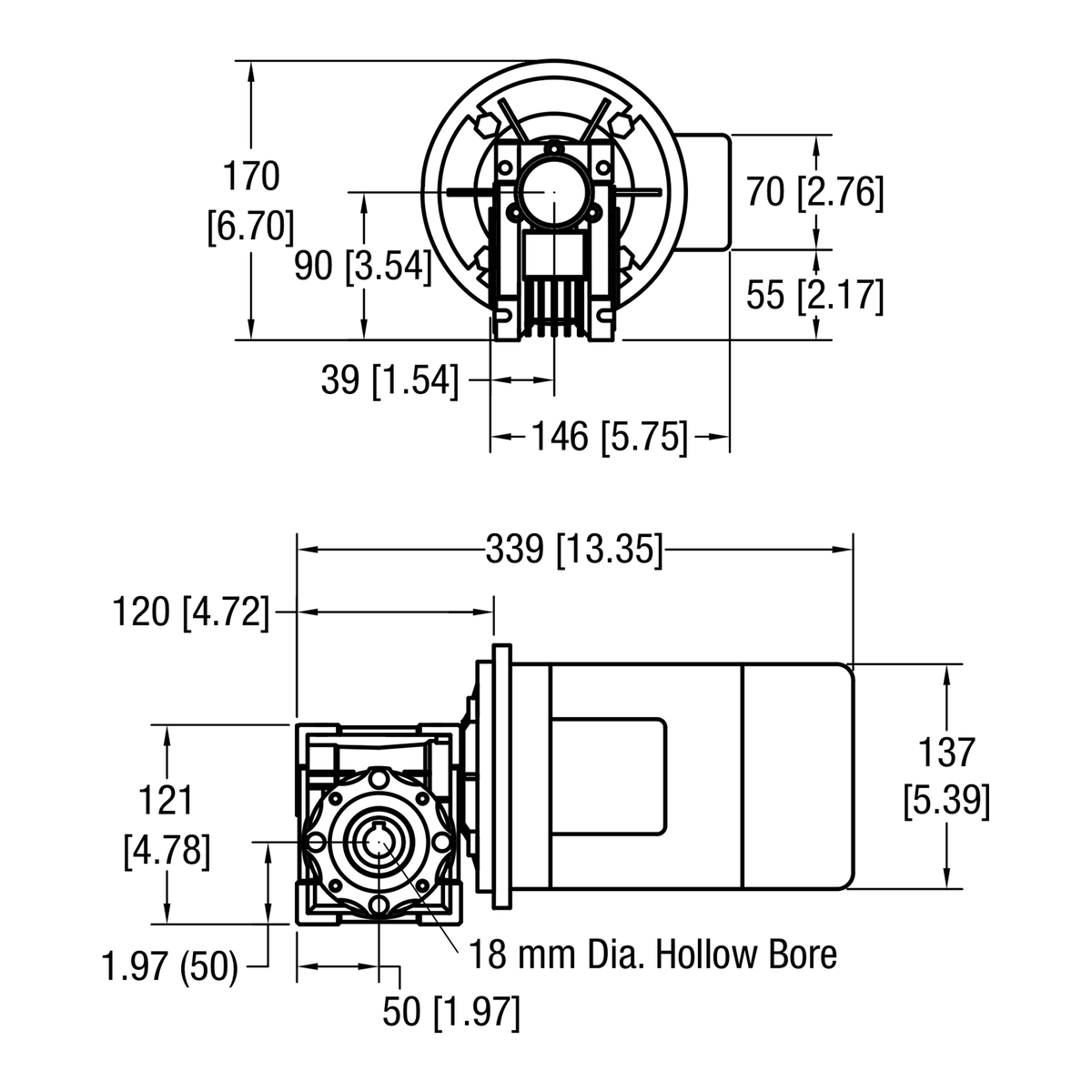

Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing
Dorner 90° eDrive IEC C-Face VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32Z010ES423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 0.37 kW, 140 RPM

SKU: 32Z010ES423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,169.00

Standard load IEC VFD Variable Speed gearmotor, .5 Hp (.37kw), 230/400 volt, 3 phase, 25-63 Hz, 140 RPM. Order variable speed controller separately. Uncrated weight = 27lb (12kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 140
  • Gear Ratio 10:1
  • Output Torque (Nm) 17.3
  • Motor Power (Hp) 0.5 Hp
  • Motor Power (kW) 0.37
  • Voltage 230/400V
  • Phase 3 phase
  • Frequency VFD 25-63 Hz
  • Full Load Amps 2.1 / 1.2 A
  • Motor Mount IEC 63 B5 (0.18 kW) / IEC 71 B5 (0.37 kW)
  • Weight 27 lb
