Home » Dorner 32Z005ES443FN Gearmotor, Fixed Speed, 90° Right Angle, 0.37 kW, 280 RPM

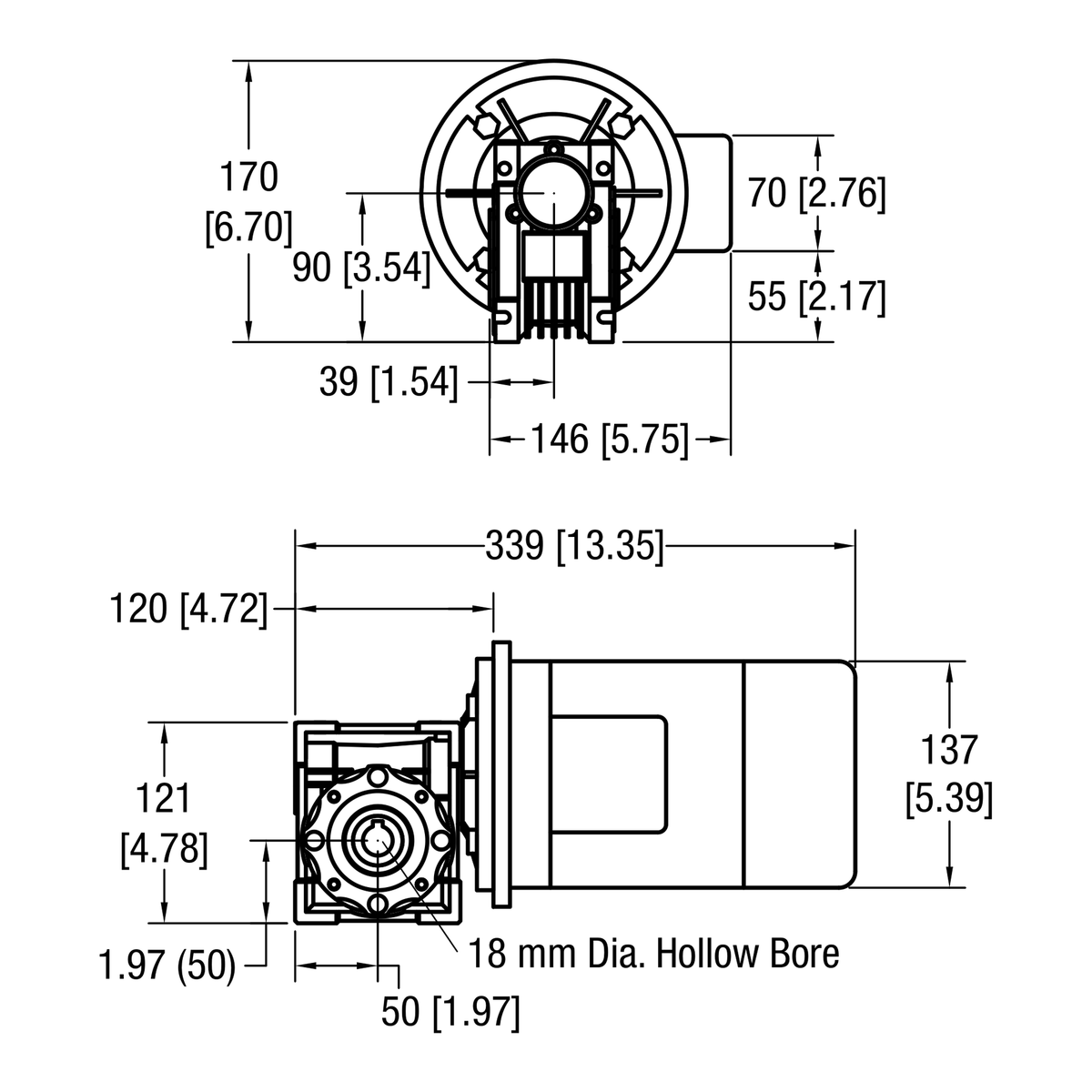

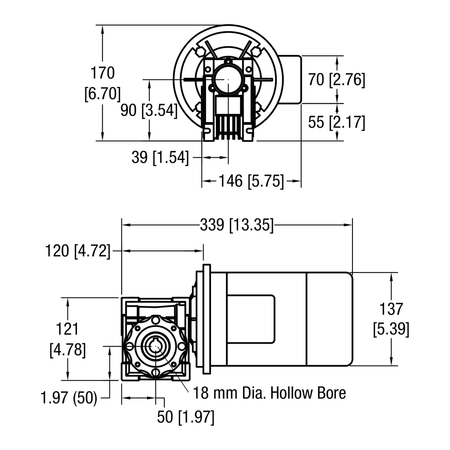

Dorner 90° eDrive IEC C-Face gearmotor dimensional drawing
Dorner 90° eDrive IEC C-Face gearmotor dimensional drawing
Dorner

Dorner 32Z005ES443FN Gearmotor, Fixed Speed, 90° Right Angle, 0.37 kW, 280 RPM

SKU: 32Z005ES443FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,169.00

Standard load CE 90° shaft eDrive™ gearmotor, .50 Hp (.37kW), 400 volt, 3-phase, 50 Hz, 280 RPM. Customer must supply on/off switch and motor overload to comply with CE safety Directive. Uncrated weight = 27 lbs. (12.2 kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 280
  • Gear Ratio 5:1
  • Output Torque (Nm) 9
  • Motor Power (Hp) 0.5 Hp
  • Motor Power (kW) 0.37
  • Voltage 400V
  • Phase 3 phase
  • Frequency 50 Hz
  • Full Load Amps 2.1 / 1.2 A
  • Motor Mount IEC 63 B5 (0.18 kW) / IEC 71 B5 (0.37 kW)
  • Weight 27 lb
