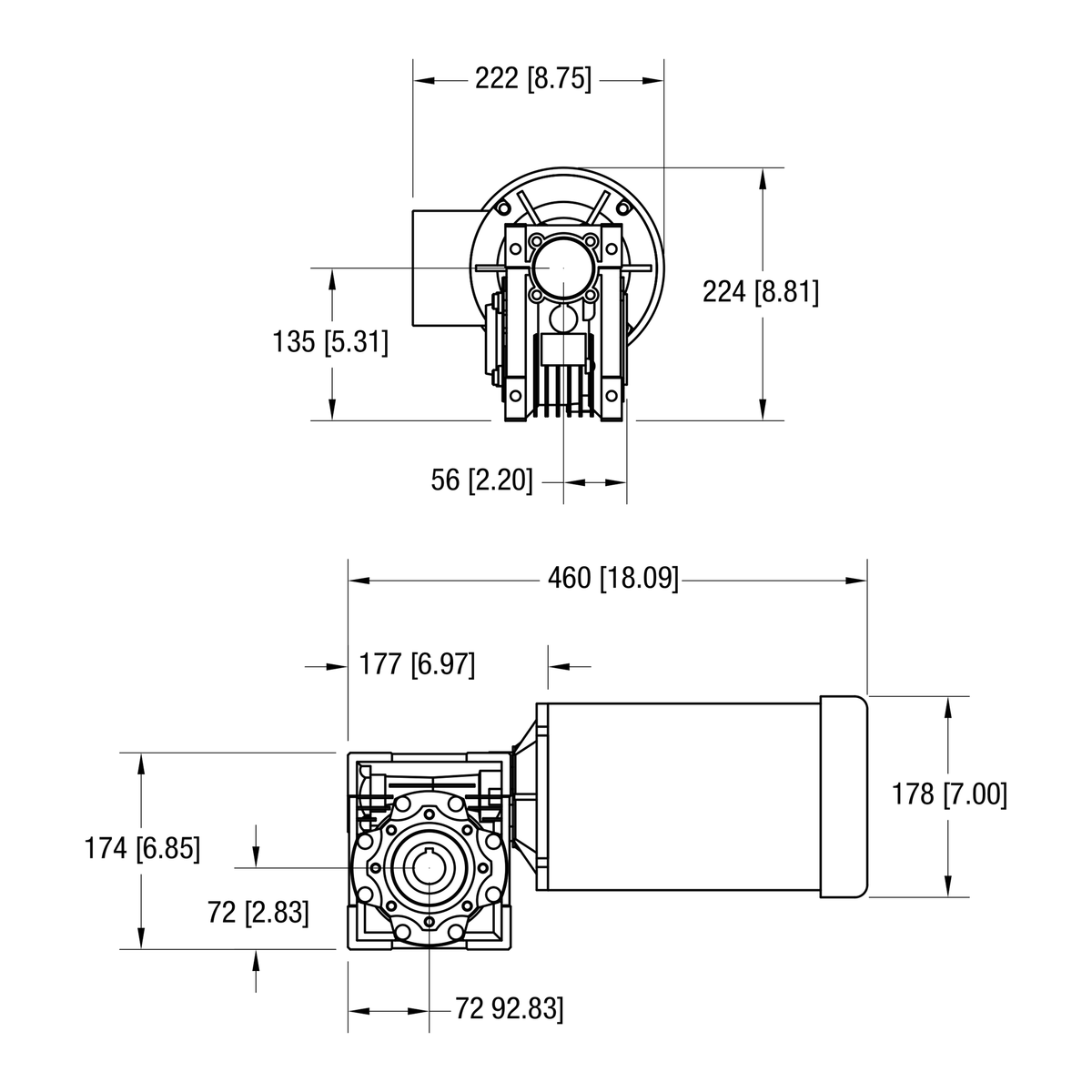

Dorner 90° eDrive NEMA C-Face gearmotor dimensional drawing
Dorner 90° eDrive NEMA C-Face gearmotor dimensional drawing
Dorner

Dorner 32M100EH423FN Gearmotor, Fixed Speed, 90° Right Angle, 0.5 Hp, 17 RPM

SKU: 32M100EH423FN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,157.00

Heavy load E-Drive 90 Degree Fixed Speed gearmotor, .5 Hp (.37kw), 208-230/460 volt, 3 phase, 60 Hz, 17 RPM. Order 3 phase starter separately. Uncrated weight = 32lb (15kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed
  • Output Speed (RPM) 17
  • Gear Ratio 100:1
  • Output Torque (in-lb) 913
  • Output Torque (Nm) 103
  • Motor Power (Hp) 0.5 Hp
  • Motor Power (kW) 0.37
  • Voltage 208-230/460V
  • Phase 3 phase
  • Frequency 60 Hz
  • Full Load Amps 2.0 / 1.0 A
  • Motor Mount NEMA 56C (0.5 & 1 Hp) / NEMA 145TC (1.5 & 2 Hp)
  • Weight 32 lb
