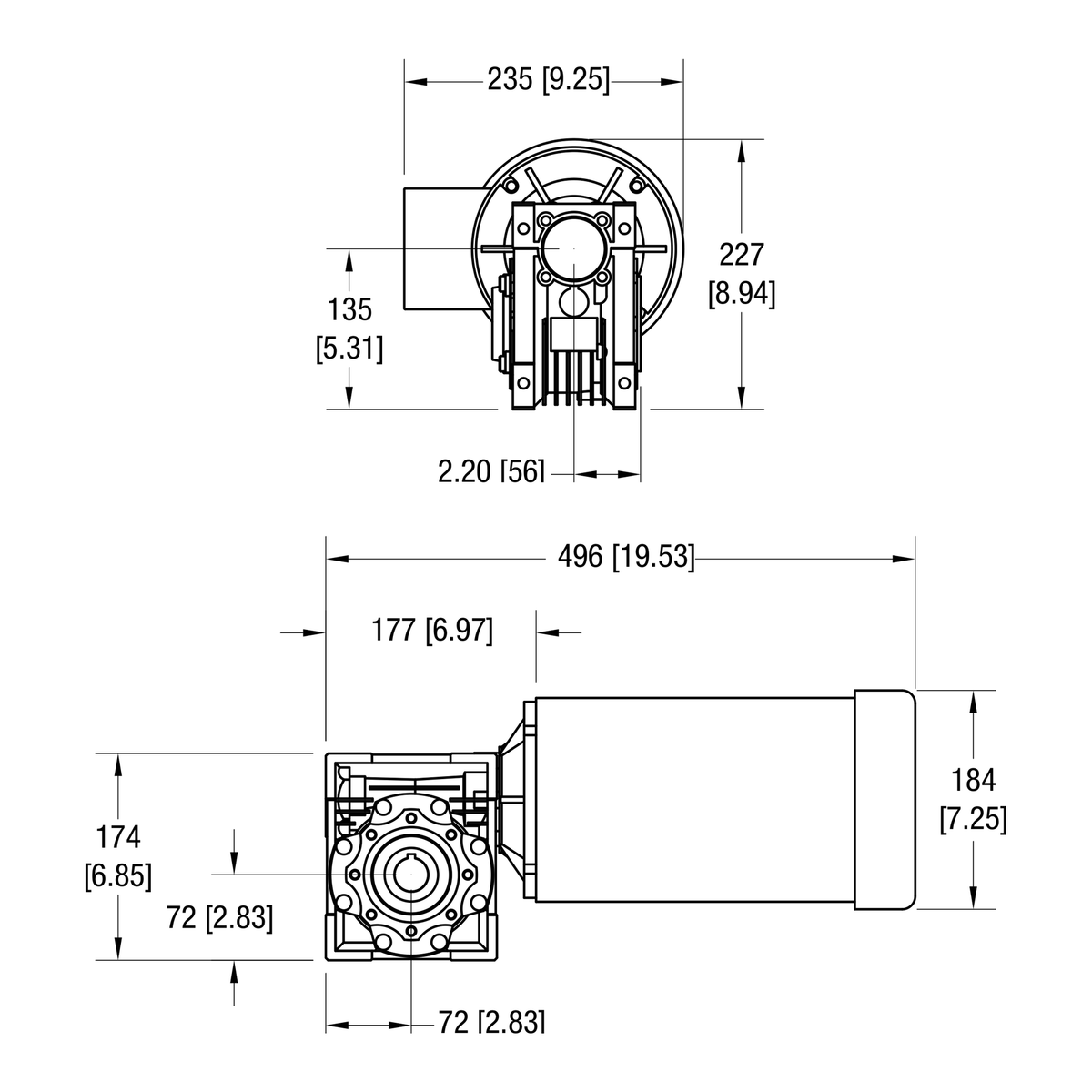

Dorner 90° eDrive NEMA C-Face VFD Rated gearmotor dimensional drawing
Dorner 90° eDrive NEMA C-Face VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M080EH423EN Gearmotor, VFD Variable Speed, 90° Right Angle, 0.5 Hp, 22 RPM

SKU: 32M080EH423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,157.00

Heavy load E-Drive 90 Degree VFD Variable Speed gearmotor, .5 Hp (.37kw), 230/460 volt, 3 phase, 15-60 Hz, 22 RPM. Order variable speed controller separately. Uncrated weight = 36lb (16kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC VFD
  • Output Speed (RPM) 22
  • Gear Ratio 80:1
  • Output Torque (in-lb) 833
  • Output Torque (Nm) 94
  • Motor Power (Hp) 0.5 Hp
  • Motor Power (kW) 0.37
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency VFD 15-60 Hz
  • Full Load Amps 1.6 / 0.8 A
  • Motor Mount NEMA 56C (0.5 & 1 Hp) / NEMA 145TC (1.5 & 2 Hp)
  • Weight 36 lb
