Home » Dorner 32M060ESD9DEN Gearmotor, DC Variable Speed, 90° Right Angle, 0.5 Hp, 42 RPM

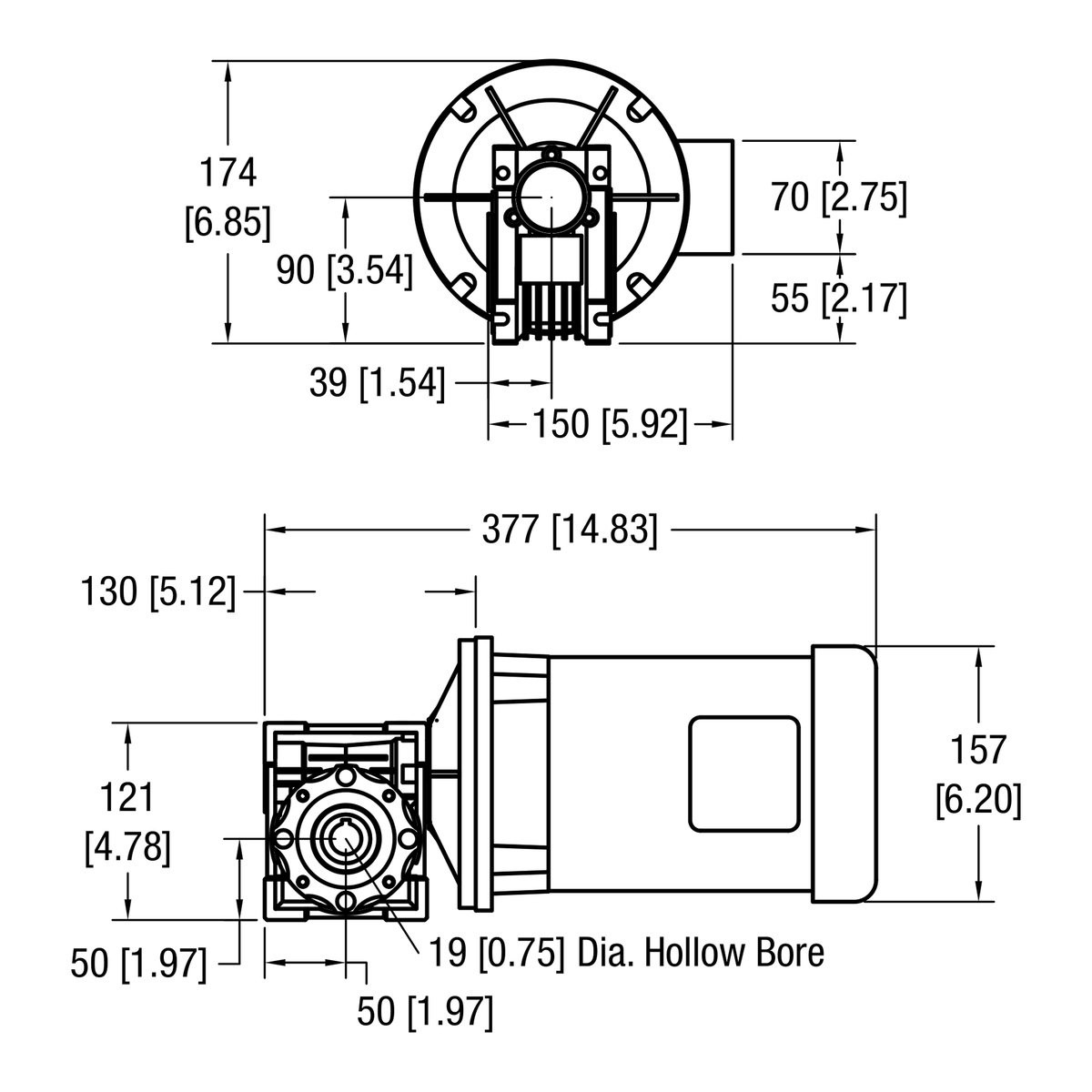

Dorner 90° NEMA C-Face DC gearmotor dimensional drawing

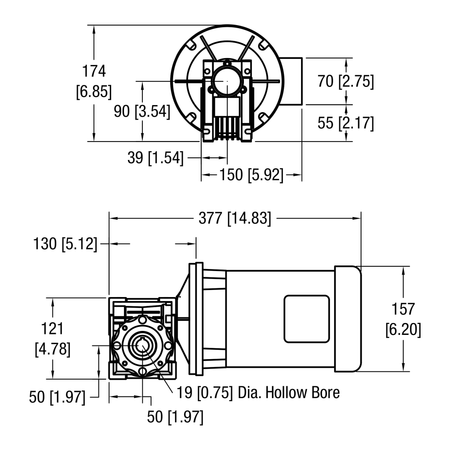

Dorner 90° NEMA C-Face DC gearmotor dimensional drawing
Dorner

Dorner 32M060ESD9DEN Gearmotor, DC Variable Speed, 90° Right Angle, 0.5 Hp, 42 RPM

SKU: 32M060ESD9DEN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$986.00

Standard load E-Drive 90 Degree DC Variable Speed gearmotor, .5 Hp (.37kw), 90 volt, 42 RPM. Order variable speed controller separately. Uncrated weight = 20lb (9kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type Brushed DC
  • Output Speed (RPM) 42
  • Gear Ratio 60:1
  • Output Torque (in-lb) 319
  • Output Torque (Nm) 36
  • Motor Power (Hp) 0.5 Hp
  • Motor Power (kW) 0.37
  • Voltage 90V DC
  • Phase DC
  • Full Load Amps 5 A
  • Motor Mount NEMA 56C
  • Weight 20 lb
