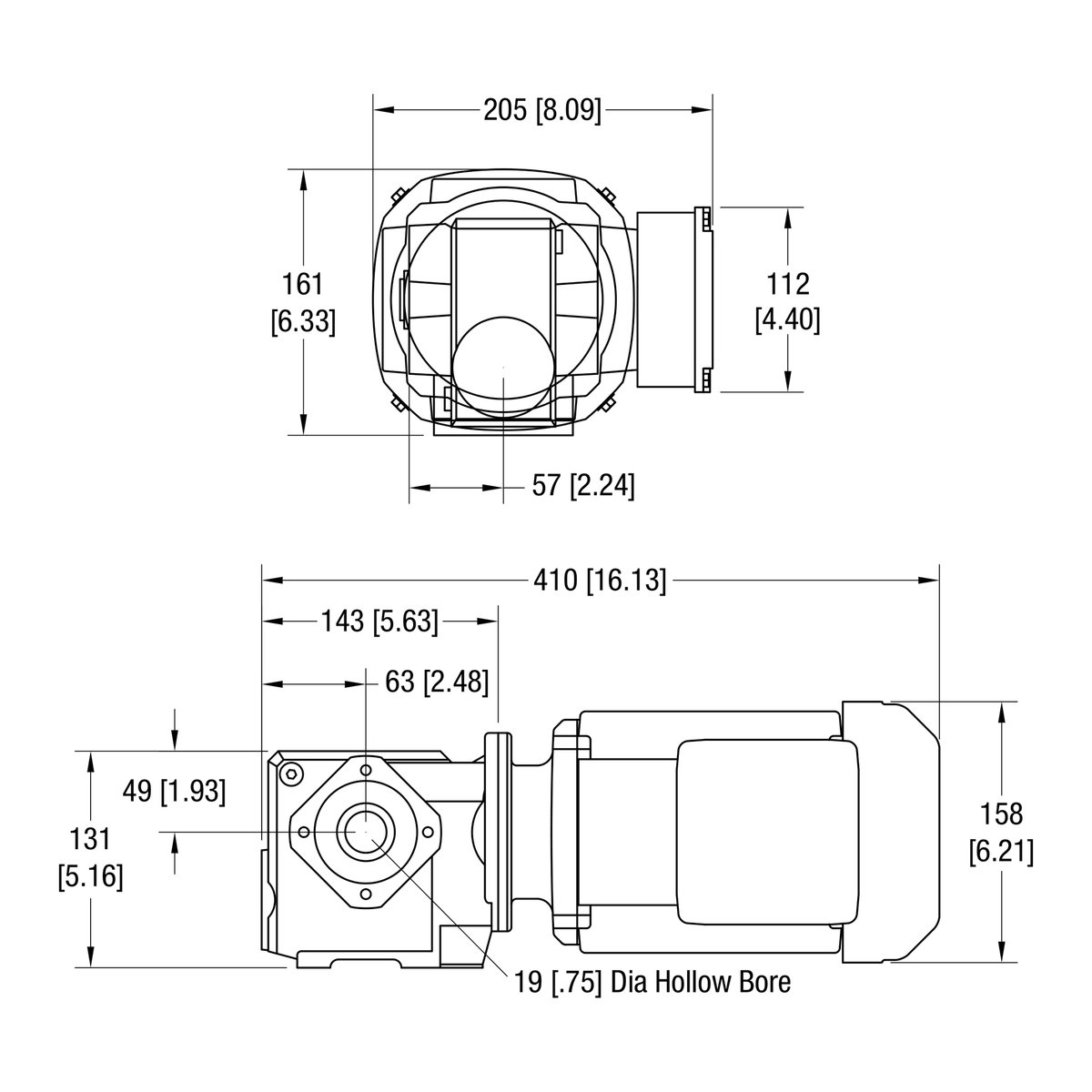

Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner 90° SEW VFD Rated gearmotor dimensional drawing
Dorner

Dorner 32M038WS423EN Gearmotor, Fixed Speed or VFD, 90° Right Angle SEW, 0.5 Hp, 47 RPM

SKU: 32M038WS423EN
Estimated ship time:5 Business Days
Call Us for Volume Discount Availability 704.519.4661
$1,753.00

Standard load SEW 90 Degree Fixed Speed gearmotor, .5 Hp (.37kw), 230/460 volt, 3 phase, 60 Hz, 47 RPM. Uncrated weight = 40lb (18kg).
  • Conveyor Series
    • 3200
  • Gearbox Type 90° right angle
  • Motor Type AC fixed or VFD
  • Output Speed (RPM) 47
  • Output Torque (in-lb) 548
  • Output Torque (Nm) 61.9
  • Motor Power (Hp) 0.5 Hp
  • Motor Power (kW) 0.37
  • Voltage 230/460V
  • Phase 3 phase
  • Frequency 60 Hz (VFD compatible, constant torque 10-60 Hz)
  • Full Load Amps 1.84 / 0.92 A
  • Motor Mount SEW SA37
  • Weight 40 lb
